Two Troubleshooting Tools in One

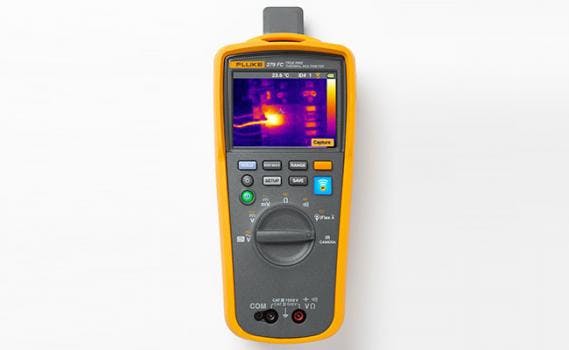

279 FC TRMS Thermal Multimeter integrates a full-featured true RMS (TRMS) digital multimeter (DMM) with a thermal camera in one device to speed troubleshooting.



The 279 FC allows technicians to quickly and safely check for hot spots in fuses, wires, insulators, connectors, splices, and switches with the imager and then troubleshoot and analyze issues with the DMM. By combining two test tools into one, electricians and technicians can carry fewer tools and have a higher level of confidence they have the tools handy to solve problems.



The thermal multimeter features 15 electrical measurement functions including AC/DC voltage, resistance, continuity, capacitance, diode test, min/max, and frequency. The optional iFlex clamp can wrap around conductors and wires in tight, hard-to-reach spaces and expands its measurement capabilities to include ac current up to 2500 A. The 3.5-in. (8.89 cm) full-color LCD screen makes for easy, clear viewing of images.



The wireless 279 FC is part of Fluke Connect—a system of wireless test tools that communicate via the Fluke Connect app or Fluke Connect Assets software, a cloud-based solution that gathers measurements to provide a comprehensive view of critical equipment status—allowing technicians to record and share both thermal images and electrical measurements in real time via their smartphones or tablets and automatically upload them to the cloud. Reports can be created and shared right from the job site via email and collaborate in real time with other colleagues with ShareLive video calls, which increases productivity in the field.


The CAT III 1000 V, CAT IV 600 V safety-rated thermal multimeter has a rechargeable lithium-ion battery that lasts up to a full work day (10+ hours) under normal conditions.

• Full-featured multimeter with a built-in thermal imager
• 15 measurement functions including voltage ac and dc, resistance, continuity, capacitance, diode test, Min/Max/Avg, current ac with included iFlex current probe
• Assembled in the USA
• CAT III 1000 V, CAT IV 600 V measurement category
• Designed for durability, built to withstand a 1 m (3 ft) drop, double insulated with raised rubber holster for increased protection

DMMBasic DC accuracy0.09%Bandwidth1% 45 to 65 Hz, full-time low pass filterVoltageAC/DC 1,000VCurrent AC2500 A with included iFlex Flexible Current ProbeResistance50 M?Frequency100 kHzCapacitance9,999 µFContinuity with beeperYesDiode testYesMin/Max recordingYesDisplay HoldYes



Infrared cameraInfrared Resolution102 x 77Image Capture Frequency8 HzField of View36° (w) x 27° (h)NETD?200 mKInfrared Spectral Band7.5 to 14 micronsCenter PointYes (with center point temp)Focus MechanismFixed focusTemperature Range-10 to 200°C (14 to 392°F)
Accuracy: ±5°C (9°F) or (±5% as tested)Emissivity0.95 fixedBackground Compensation20°C fixedMemory storageApproximately 100 images (internal)File formatNon-radiometric .is2



General SpecsBattery TypeRechargeable lithium-ion battery (charge time: 4.5 hours)Operating Temp.-10 to 50°C (14 to 122°F)Storage Temp.-20 to 60ºC (-4 to 140°F)Relative Humidity0% to 90% (0 to 35°C) (32 to 95°F)
0% to 75% (35 to 40°C) (95 to 104°F)
0% to 45% (40 to 50°C) (104 to 122°F)Altitude2,000 m (6,561 ft)Temperature CoefficientAdd 0.1 x specified accuracy
for each °C above 28°C or below 18°C
(°F above 82°F or below 64°F)Ingress Protection(IP) IP40 (non-operating)Wireless Frequency2.4 GHz ISM Band, 20 m rangeCertificationsCE, CSA, FCCSafety ComplianceIEC 61010-1: Pollution degree 2;
IEC 61010-2-033: CAT III 1,000 V/CAT IV 600 VEMCEN 61326-1:2012Size216 x 94 x 57 mm (8.5 x 3.7 x 2.25 in.)Weight0.793 kg (1.75 lb.)
