These modular clamping columns enable direct clamping of molding plates, free-form parts, and other work pieces on the machine table within seconds, without additional clamping devices or interfering contours. They are ideal for applications that require minimal batch sizes, high precision requirements, and complex geometries need high-tech solutions.

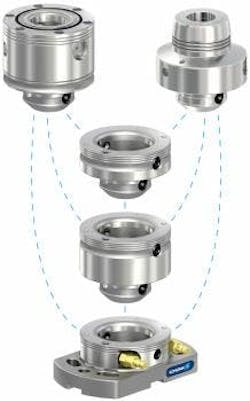

The system consists of VERO-S WDB base modules for the machine table, VERO-S WDN clamping modules (ø 99 mm), and freely combinable VERO-S WDS stacking modules. The latter have a standardized height of 30 mm and 50 mm, to allow fine graduations of 10 mm in the height of the clamping columns starting at a height of 80 mm.
- VERO-S WDS Stacking Modules have a standardized height of 30 mm and 50 mm, to allow fine graduations of 10 mm in the height of the clamping columns starting at a height of 80 mm
- Connections between the single modules are designed for high machining parameters, with a high pull-in force of up to 25,000 N
- Scope-free taper centering ensures a repeat accuracy of < 0.005 mm between the single components
