CONTA-CLIP's shield connection clip program provides technicians and manufacturers of electrical equipment and cabinets with an innovative modular system for easy tool-free contacting of cable shielding with DIN rails, bus bars, enclosures or mounting plates. The sophisticated design comprising a limited, easily manageable number of pluggable, variable components offers the right solution for any installation situation and for various cable diameters.

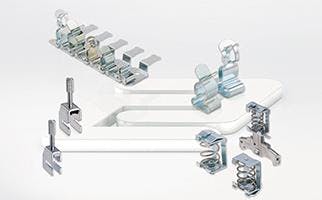

The system includes various shield connection clamps for cable diameters of 1.5 mm to 18 mm, clamp mountings for all mounting types, bus bar holders and the proven CONTA-CLIP screen-connection clips with screw or spring contact technology. The stripped cable is pushed into the SABK type shield-connection clamps. The spring tension of the clamp then results in an even all-around contacting of the cable shield. The large-area shield contact ensures a low input leak resistor even at high frequencies. Thanks to a specialized design with two retracting legs, the clamp version SABKM Multi also offers a wide, flexible clamping range, allowing users to reduce the number of types to be kept in stock. Moreover, clamps of all types and sizes are easy to snap onto any kind of mounting foot. Mounting foots are available in three designs: with M4 or self-tapping M5 screws for direct mounting, for snap-on mounting on 10 x 3 mm bus bars, and for snap-on mounting on TS 35 mounting rails. A metal peg on the mounting feet allows for a firm connection of cable ties to the feet for strain relief. For row mounting of up to twelve cable screens, row mounting feet are also available. They can be easily snapped off at predetermined breaking points for any required quantity. Users can opt for either screw or rivet attachment.
Features:
- available cable cross sections between 3 and 35 mm
- screw or rivet attachment
- mounting feet come in three designs
