XY-BSMA-WJ Series Precision XY Tables

June 7, 2024

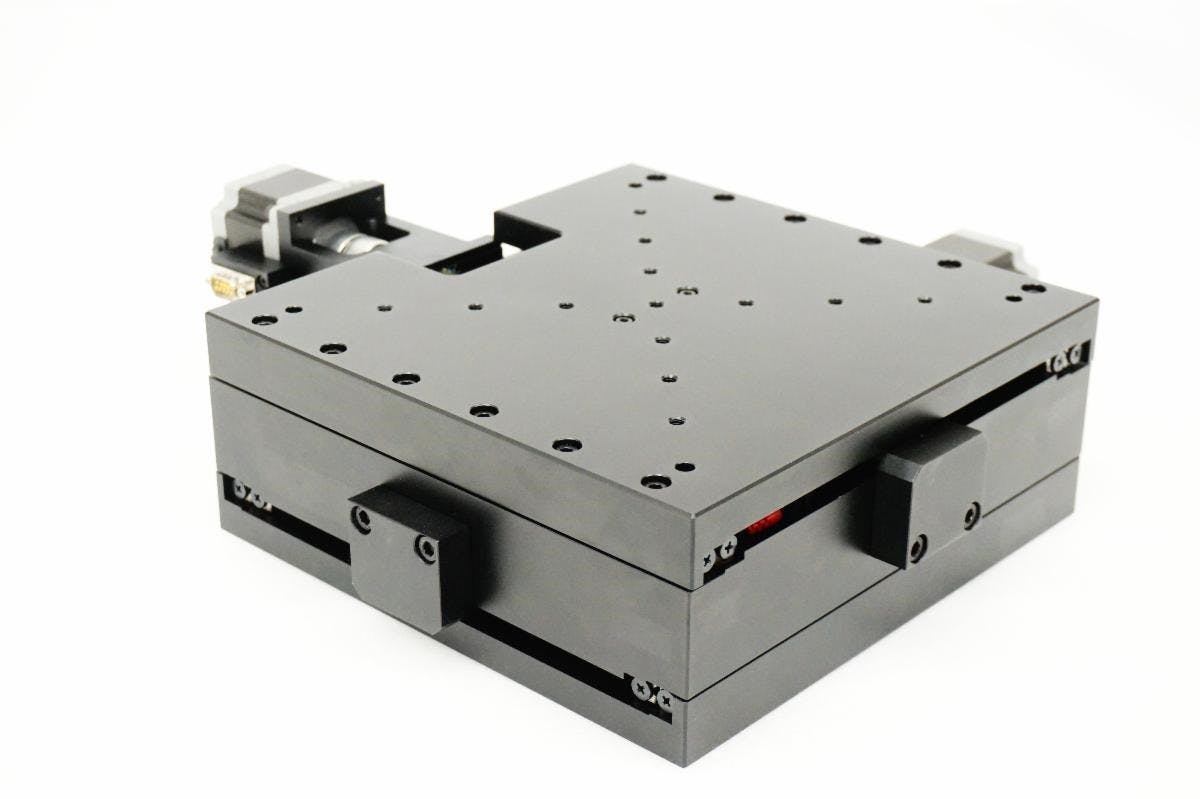

Intellidrive's XY-BSMA-WJ series precision XY tables are low-profile stages used for applications that require low-cost stepper motors and brushless servo motors.

The XY-BSMA-WJ series precision XY tables are low-profile stages used for many applications. Specifically, these are high-precision XY stage options for applications that require low-cost stepper motors and brushless servo motors.

The stages use stiff crossed roller mechanical bearings for support and smooth motion. Precision pre-loaded ball screws allow higher speeds and accuracy compared to lead screw-driven motion products. Servo motors and linear encoders can be added for more precise positioning and accurate feedback for high repeatability and accuracy.

Features:

  • High-speed ball screws
  • Very repeatable motion
  • Best performance value

Applications/Industries:

  • Industrial robots
  • Fiber optics and photonics
  • Vision systems
  • Machine tools
  • Assembly
  • Semiconductor equipment
  • Medical component laser machining
  • Micro-machining
  • Electronic manufacturing
  • Other industrial automation applications

Price: Contact the company for a quote

XY-BSMA-WJ 100 200 300 400 600
Actuator Motorized Ball Screw
Stroke 100x100 mm 200x200 mm 300x300 mm 400x400 mm 600x600 mm
Ball Screw Lead 0.15 in. (4 mm)
Motor Mounts NEMA 17/
NEMA 23
NEMA 23
Motor Type stepper; servo with encoder (4000cpr)
Repeatability ± 5 µ ± 10 µ
Load Capacity 33 lb./66 lb.
(15 kg/30 kg)
66 lb. (30 kg) 110 lb. (50 kg)
Max. Screw 1.5 in/s (40 mm/s [stepper]); 3 in./s (80 mm/s [servo/encoder])
