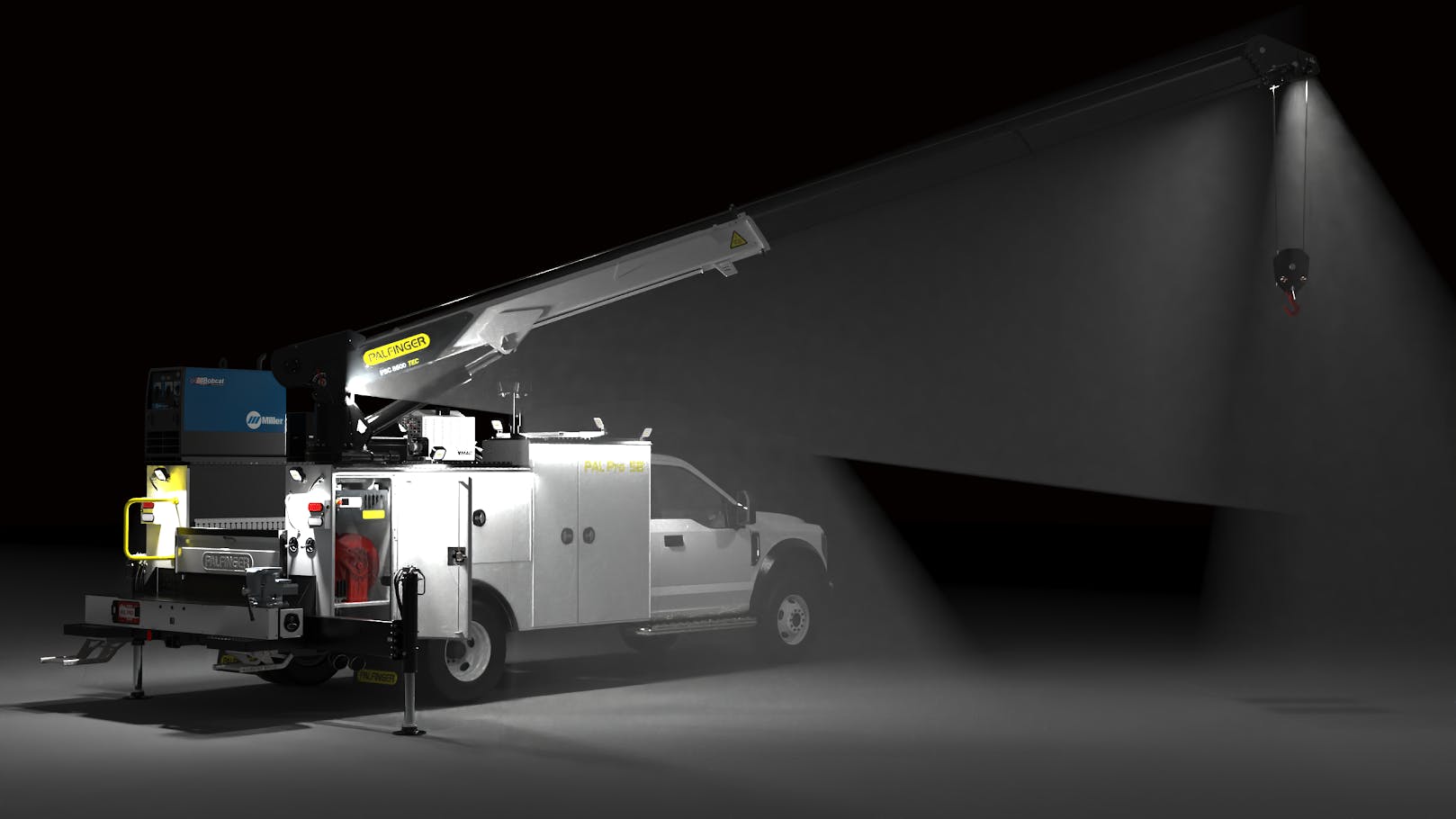

Optimized for Class 5 chassis applications, the PAL Pro 58 and PSC 8600 TEC Service Crane are engineered to deliver extended reach, weight reduction, and superior performance.
Manufactured with 12-gauge all A-60 galvanneal steel and a hybrid torsion box, the PAL Pro 58 Mechanics Truck eliminates frame and side pack deflection. It also features a 12-step e-coat process offering the best corrosion protection available today.
Available in 11-ft (3 m) body configurations, it caters to a wide range of service truck needs. It includes bolt-on mounting locations for accessories such as compressors and welders, headache racks, and toolboxes. Additionally, it has lighting packages to support remote work and nighttime operations.
With an 8,600 lb. (3,900 kg) lift capacity and a 58,000 ft-lb (79 kNm) moment rating, the PSC 8600 TEC Service Crane’s design relocates the winch to a boom-mounted position, streamlining operation and addressing cable concerns, while the overload protection system ensures reliability. The inclusion of Load Moment Indication (LMI) provides operators with real-time, load-on-hook information, enhancing safety and efficiency.
The PSC 8600 TEC Service Crane is available with 22 or 31 ft (7 or 9 m) of reach. Two interchangeable proportional remote control styles are also available to fit the operator's preference.
Pal Pro 58 Features:
- 52-in. (1,322 mm) standard compartment heights with raised compartment options
- 11-ft (3 m) standard configurations
- Treadplate cargo floor, load space walls, and compartment tops
- Hybrid torsion box and ladder frame
- PALFINGER-engineered internal gussets prevent body cracking
- Full-length channel drip rails
- Double panel doors with internal C-channel stiffeners, adhered with structural adhesive
- Non-marring boom rest
- Workbench featuring 24-in. (610 mm) work surface with 1/4-in. (6 mm) steel top plate, full width through compartment with hitch receiver tube and reinforced for 15-ton pintle plate
- Linear adjustable front mounts
- Full-length stainless steel hinges
- 316 marine grade stainless steel hinges
- A-60 galvanneal zinc-coated steel
- Rubber-mounted LED lights
- E-coat primer
| PSC 8600 TEC | |
| Capacity | 8,600 lb. (3,900 kg) |
| Lifting Moment | 58,000 to 62,900 ft-lb. (79 to 85 kNm) |
| Boom Extensions | 2 Hydraulic |
| Boom Length | 22 or 31 ft. (7 or 9 m) |
| Winch Speed | 72 ft/min (22 m/min) |
| Standard Weight | 1,860 lb. (844 kg) |
| Chassis Specification | Class 5 |
