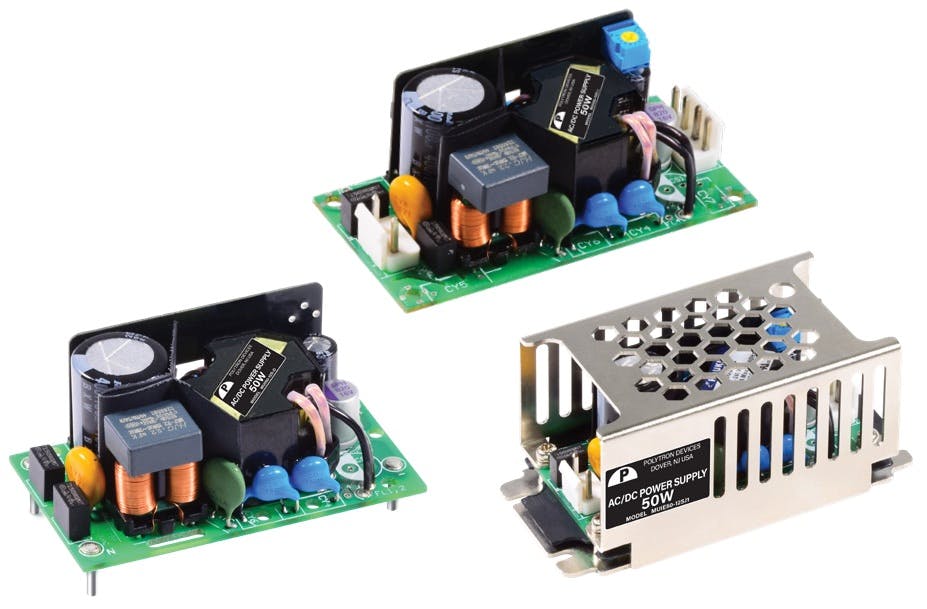

Daburn Electronics and its Polytron Devices division have launched the MUI50 Series of AC/DC medical power supplies. Accepting 85 to 264V, these universal input units deliver up to 50 W of continuous power and include a peak power function that allows up to 140% of rated output power for 5 seconds.
The Isolation Class I and II power supplies 4,000V AC reinforced 2 x MOPP insulation to protect against shock and electrocution, 5,000V AC input to output isolation, and a low leakage current of less than 100 µA. Additional safeguards include adjustable voltage output, overcurrent, overvoltage, and short circuit protection as well as EMC compliance.
Featuring a high efficiency of up to 92.5%, the MUI50 medical-grade power supplies operate from -40 to 131°F (-40 to 55°C) without derating and up to 185°F (85°C) with derating or forced air cooling. Their compact 3 x 1.5-inch open frame package makes them ideal for pulse oximeters, handheld ultrasound devices, mobile C-arm systems, ambulatory infusion pumps, and ECG monitors.
Features:
- Isolation Voltage:
- Input to Output, 1 minute, 2MOPP insulation: 4,000V AC
- Input (Output) to F.G.: 2,500V AC
- Isolation Resistance: 500V DC, 0.1GΩ
- Switching Frequency
- 230V aAC, 5V: 70 to95 kHz
- 230V AC, 7.5V: 95 to 120 kHz
- 230V AC, Others: 110 to 135 kHz
- Operating Ambient Temperature: -40 to 185°F (-40 to 85°C)
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Relative Humidity: Non-condensing, 5% to 95% RH
- Design Meet Safety Standard: IEC/EN/ANSI/AAMI ES 60601-1, IEC/EN/UL 62368-1
Price: Contact the company for a quote.
Applications/Industries:
- Pulse oximeters
- Handheld ultrasound devices
- mobile C-arm systems
- ambulatory infusion pumps
- ECG monitors
| Model | Input Voltage Range |
Output Voltage | Output Current Natural Convection | Max. Output Power | Efficiency | Input Power at No Load | Max. Capacitor Load |
| MUI50-S5B | 85 to 264V DC | 5V DC | 8,000 A | 40 W | 90.5% | 50 mW | 16,000 µF |
| MUI50-S7.5B | 85 to 264V DC | 7.5V DC | 6,670 A | 50 W | 90.5% | 50 mW | 8,900 µF |
| MUI50-S9B | 85 to 264V DC | 9V DC | 5,560 A | 50 W | 90.5% | 50 mW | 6,200 µF |
| MUI50-S12B | 85 to 264V DC | 12V DC | 4,170 A | 50 W | 92.5% | 50 mW | 3,500 µF |
| MUI50-S15B | 85 to 264V DC | 15V DC | 3,340 A | 50 W | 92.5% | 50 mW | 2,300 µF |
| MUI50-S18B | 85 to 264V DC | 18V DC | 2,780 A | 50 W | 92.5% | 100 mW | 1,600 µF |
| MUI50-S24B | 85 to 264V DC | 24V DC | 2,085 A | 50 W | 92.5% | 100 mW | 870 µF |
| MUI50-S36B | 85 to 264V DC | 36V DC | 1,390 A | 50 W | 91.5% | 100 mW | 390 µF |
| MUI50-S48B | 85 to 264V DC | 48V DC | 1,045 A | 50 W | 91.5% | 100 mW | 220 µF |
| MUI50-S53B | 85 to 264V DC | 53V DC | 950 A | 50 W | 91.5% | 100 mW | 180 µF |
Daburn Electronics | Polytron Devices Division
Dover, NJ
(973) 328-3200
[email protected]
www.daburn.com
