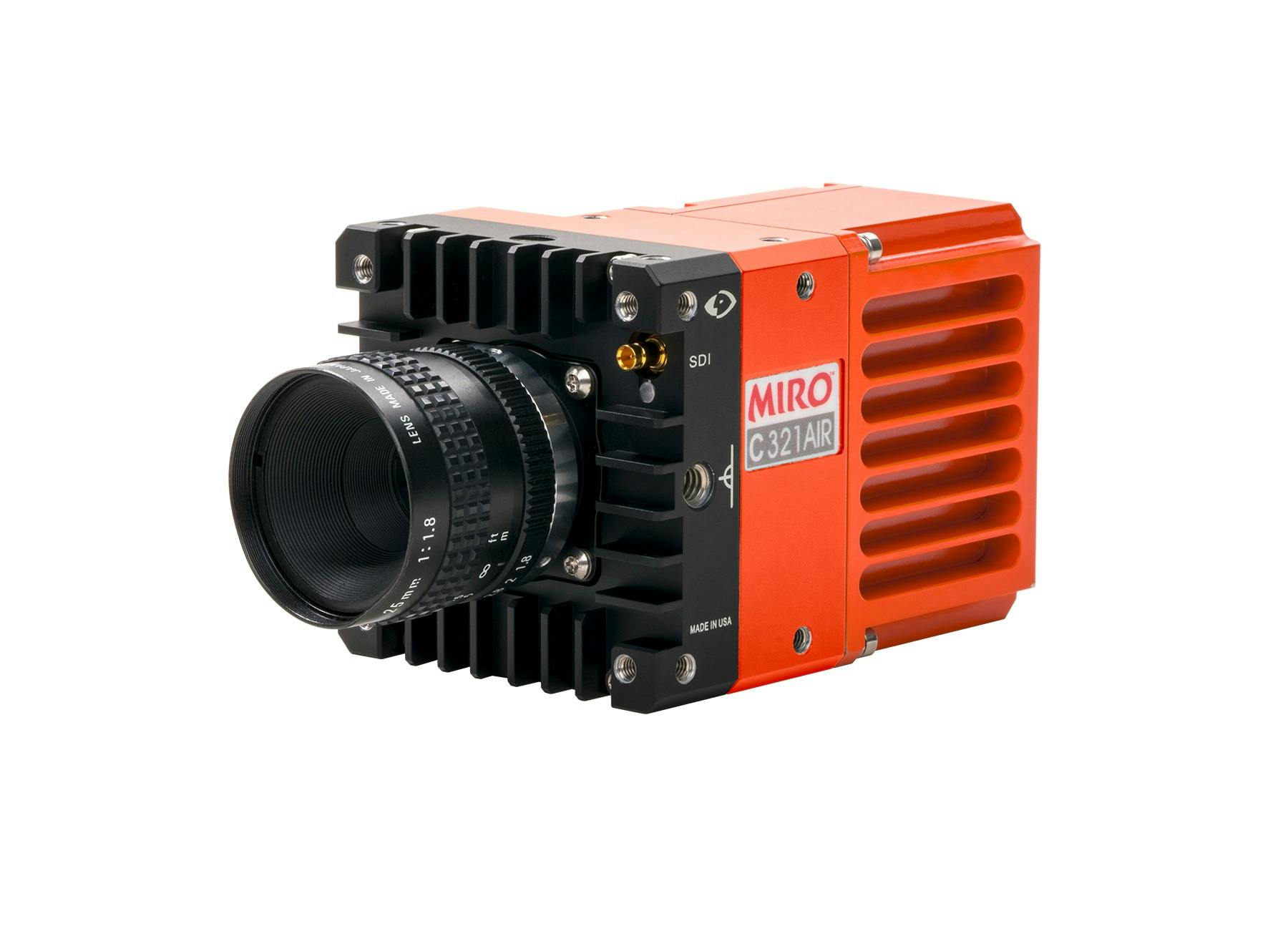

Phantom C321 Air High-Speed Camera

Phantom Miro C321 Air high-speed camera for airborne testing applications in manned and unmanned testing requirements.

The C321 Air achieves 1,480 frames per second (fps) at full HD (1920 x 1080) resolution and up to 94,000 fps at reduced resolutions. It also features a 10-µ pixel size for high sensitivity, low noise, and high dynamic range to capture events with minimal motion blur.

Satisfying aerospace-specific specifications including the vibe test (MIL-STD 810H, Method 514.8, Category 12 (Jet), up to 26 Grms), the camera is tested to -67°F (-55°C), includes conformal-coated boards to protect against humidity, and offers a removable CFast solid-state drive (SSD). Users can download shots to the flash in-flight, saving multiple captures from a mission.

Features:

• Small, compact form factor
• HD resolution (1920 x 1080)
• Throughput: 3 Gpx/s image capture
• Max. frame rate at full resolution: 1,480 fps
• Max. frame rate at reduced resolution: 94,000 fps
• Operational temperature range: -67 to 122°F (-55 to 50°C)
• Programmable I/O to easily configure signals
• Designed to meet MIL-STD 810H, 704, and 461 standards
• 16GB RAM with memory partitioning capabilities
• CFast and auto-save features for securely storing multiple shots
• Sensitivity: Quantum Efficiency
  • Mono: 45.3%
  • Color: 31.5%

Vision Research Inc.
Wayne, NJ
(800) 737-6588
[email protected]
www.phantomhighspeed.com
