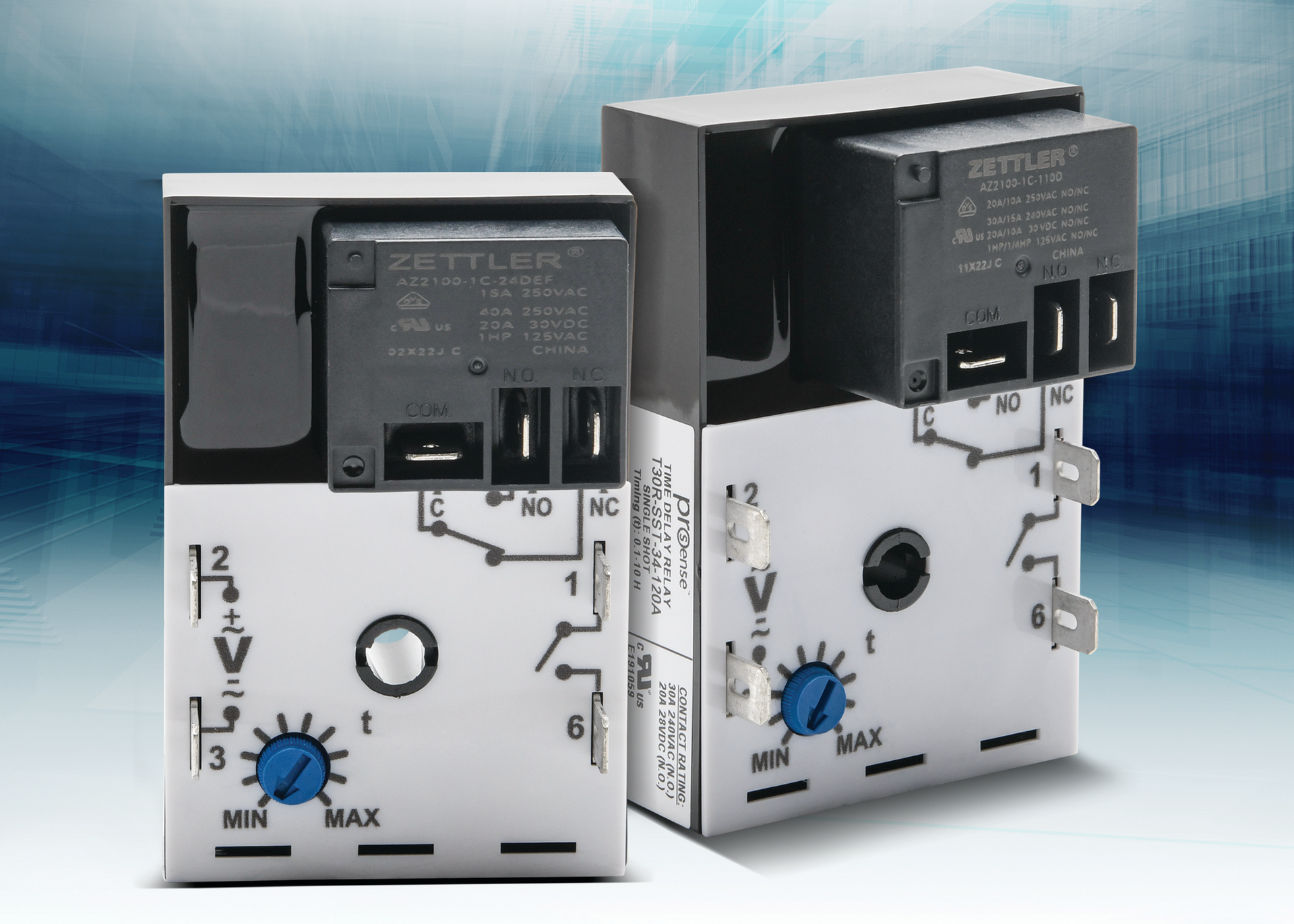

The ProSense T30R series of rugged timer relays features a high 30A SPDT output contact that controls loads without requiring a separate contactor. These single-function timer relays are available in on-delay, off-delay, fleeting, and cyclic mode timing options and offer an easy-to-use rotary switch adjustment with timing ranges of up to 10 hours. The timer relays are encapsulated for resistance to harsh environments and use a microprocessor-based design for superior accuracy and repeatability.
The ProSense T30R series timer relays are UL-recognized, CE-marked, and RoHS-compliant.
Features:
- Up to 30A contact ratings
- On-delay, off-delay, cyclic, flasher, fleeting (single-shot), and on-interval models
- Multi-mode models with up to 16 selectable timing functions built in
- Up to 10,230 hours of programmable time delay
- Voltages up to 240V AC and 125V DC
- Surface mounted or 8 or 11-pin octal socket
- Surface mount units are encapsulated for protection against harsh environments
- Made in the USA
