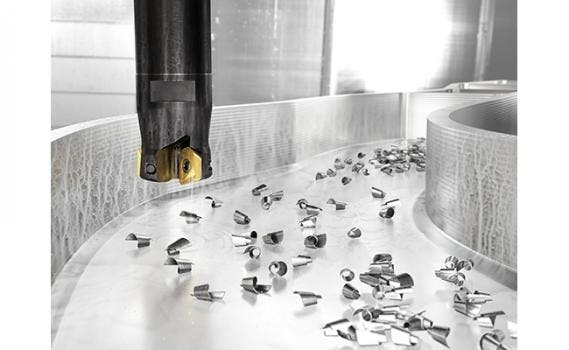

Primarily designed for milling cavities or pockets in ISO S, M, and P materials, the CoroMill MH20 high-feed milling tool ensures secure and vibration-free machining, especially at long overhangs. It delivers edge security for a variety of industries and is particularly suited to machining aerospace components.
Designed to deliver extensive tool life and reliability with minimal vibration, it is ideal for applications where components are notoriously difficult to machine, such as in the oil and gas, mold and die, and aerospace sectors.
In contrast to the conventional four-edge concept, this tool is designed with a two-edge insert. This is especially beneficial as it means the weakest section of the insert is far away from the main cutting zone, delivering greater reliability and protection against wear. It also means that machining against a corner or wall will not impact the next edge or leading corner, ensuring equal performance per edge.
Another area of innovation is the CoroMill MH20’s insert cutting edge geometry. While the sloped edge design delivers a gradual, light-cutting action that requires less power consumption to enable the use of smaller machines, the optimized edge line of the main cutting edge and insert corner radius offer further process security, enabling reliable, unmanned machining.
- Secure and vibration-free machining
- Two-edge insert
- Sloped edge design
- Optimized edge line
