3563 Analysis Vibration Sensor System

Sept. 18, 2021

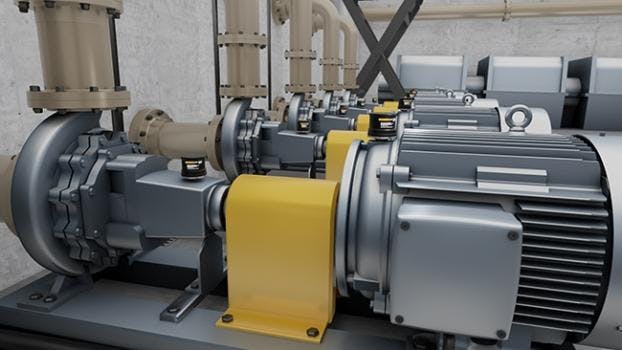

Flukes wireless vibration monitoring system reveals machine faults quickly to prevent equipment downtime.

The 3563 Analysis Vibration Sensor system is a complete solution—hardware, software, and services—that integrates a powerful set of technologies to give maintenance teams detailed insights into anything from performance tracking to fault analysis to improve the reliability of equipment.



The 3563 combines a high-frequency piezoelectric sensor, two MEMS sensors, and software, enabling maintenance teams to continuously monitor and analyze vibration readings for a facility’s critical and semi-critical assets. Its smart battery management allows for a user-determined data transmission rate and helps users adapt and extend the sensor’s battery life while still capturing the data required.



When you purchase the Fluke 3563, you get 1-on-1 setup assistance from Fluke Reliability experts, ensuring successful configuration, commissioning, and installation process. Vibration training options are also available.

Data TransmissionTransmission IntervalConfigurable, minimum default is every 10 minutesRangeFrequency Range2 to 10,000 Hz Z (0 to 1,000 Hz X, Y)Amplitude Rangez-axis: +/- 50g; x- and y-axis: +/- 16gSampling Frequency18.5 to 62.5 kHzTemperatureMeasurement Range-4° to 185°F (-20° to 85°C)Storage RangeMechanicalSize (D x H)2.6 x 2.1 in. (68 x 53.4 mm)Weight199.5 g (145 g without batteries)Ingress Protection ClassIP67Shock Limit5,000 g peakPower6 x 3.6V 1/2 AA Li-SOCl 2 battery
Battery lifetime: At least 1 year
(Every 10 minutes overalls / Every 60 minutes 2 sec. TWF)AD Conversion24 bitWireless Communication (Sensor to Gateway)Radio Frequency2.4 GHz ISM band according to IEEE 802.15.1Range (Line of Sight)Up to 328 ft (100 m), depending on the environment



  • Long Battery Life: The piezo sensor and software combine to produce a unique, smart battery management capability with a user-determined data transmission rate. Users can adjust and extend the sensor battery life while still getting the necessary data.
  • User-Friendly Interface: Users can configure the sensor based on machine type for precise readings without manually entering severity thresholds.
  • Powerful Analysis: The Live-Asset Portal software application enables users to analyze both banded overall values and narrowband values. With this capability, they can determine the fault causing a problem.
  • Flexible Wireless Network Capabilities: The wireless gateway possesses dual network connection capabilities—Wi-Fi and Ethernet—so the system can fit any facility.
  • Expert Services: remote and onsite setup, vibration training, and custom installation and training packages.
