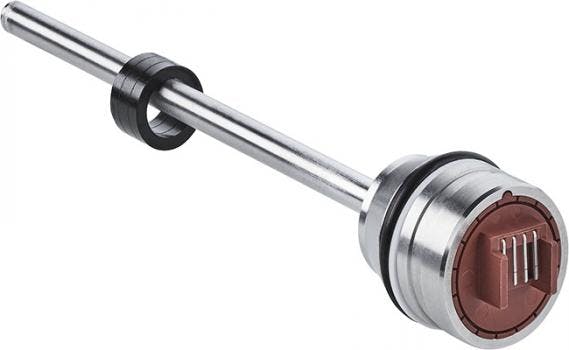

The MAX30 linear encoder accommodates small cylinders on small mobile machines. This series of encoders provides an absolute path measurement system for non-contact and fully integrated position measurement in hydraulic cylinders. It delivers the necessary data for condition monitoring and predictive maintenance.
With a 30 mm diameter housing size, the MAX30 is compact, but it can withstand harsh operational and environmental conditions for mobile applications. It works well for smaller cylinders on small mobile machines, such as a fork truck, garbage truck or other vehicles smaller than a bulldozer.
The absolute path measurement system offers comprehensive and future-proof added value, both for manufacturers and operators of agricultural and construction machinery, logistical hoisting and conveying equipment, municipal vehicles, and airport equipment.
- Measuring range: 50 to 1,500 mm (1 mm steps), typical resolution 0.1 mm
- Analog, CANopen, SAE J1939 and PWM interfaces are available
- Pressure-resistant housing, designed for hydraulic operating pressure of up to 320 bar
- High operating temperature (electronics) up to +105°C
- Fluid temperature (hydraulic oil) up to max. +95°C
- Compact dimensions: 10 mm installation space, 30 mm damping zone
- Position magnet does not need a spacer disk
