Torrent M Series Ultrasonic Cleaning System

July 9, 2021

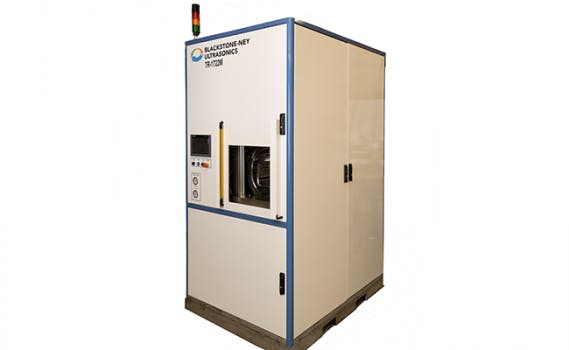

The Blackstone-NEY Ultrasonic Torrent is a highly flexible automated precision cleaning system that is dedicated to medical device and pharmaceutical cleaning.

Torrent M Series automated ultrasonic aqueous cleaning systems are for high precision medical and pharmaceutical cleaning applications. The Torrent is a single chamber, front-loading, rotary basket system that has selectable process steps that include Ultrasonic cleaning, Vacuum Ultrasonic, Spray Rinsing, CDA Blow, Vacuum Drying.



The Torrent M Series machines are self-contained, skid-mounted machines designed for both single pass or multiple pass chemistries utilizing onboard reservoirs while reducing water consumption through a broad range of user-defined machine operation parameters.



The Torrent M sets the stage for a new generation of in-process or final clean ultrasonic cleaning systems that meet FDA 21 CFR Part 11 audit trail regulations and GAMP 5 recommendations while simplifying machine IQ and OQ validation in the most demanding Medical and Pharmaceutical applications.

Cleaning SequenceWash, Rinse, & Dry
Process TypeBatch
Part OrientationBasket or Custom Fixture
ProductionTakt Time 10 to 25 Minutes per Basket
Max Work Envelope24 x 24 in.
Method of Loading/UnloadingManual
Footprint63 D x 48 W x 96 in. H
Cleaning MechanismsSpray/Immersion/Turbulation/Ultrasonics/Rotation
Drying MechanismsHigh Velocity, Heated Air with Rotation/Vacuum Dry
ControlsProgrammable Controller & HMI Touch screen
Ultrasonic FrequencyMedical Implants & Tools
