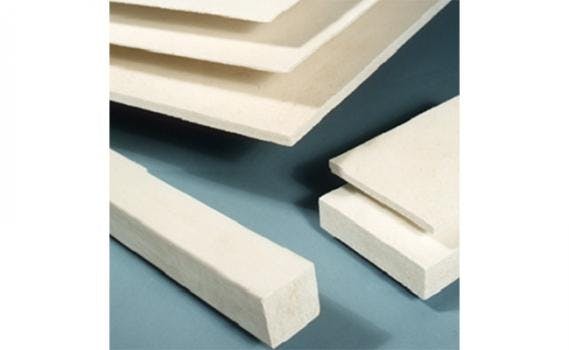

    Refractory Sheet Type RS-100 is available in 48 x 48 in. boards as a standard size. RS-100 is a fiber-reinforced structural Alumina composite with useful thermal, structural, and electrical insulating properties. These boards are also useful in the transport of molten non-ferrous metals to 2,300?F.



    RS-100 has compressive and flexural strength in the range of high-temperature reinforced plastics such as G-10 laminates but retains its strength and utility far exceeding the maximum use of these materials. The mechanical properties of RS-100 exceed those of all calcium-silicate materials and asbestos cement materials over all temperature ranges. RS-100 makes an excellent replacement for rigid asbestos-containing products and can be employed at much higher temperatures.RS-100 is 100% inorganic, non-flammable, and contains no asbestos.



    This material's high Alumina content makes RS-100 highly resistant to many environments, including non-ferrous metals, and it undergoes no out-gassing upon heating. RS-100 is not brittle and has high-impact properties. RS-100 may be cut and machined with standard tooling.

    • Excellent Electrical Properties
    • High Strength
    • High Alumina Content
    • Chemical Resistant
    • Fully Machinable
    • Non RCF



    Typical Composition, %    Al2O3

    75

       SiO2

    16

       Other Metal Oxides, %

    9

       Organic Content , %

    0

    Density, gm/cm3 (lb/ft3)

    2.1 (130)

    Porosity, %

    35

    Color

    White to Tan

    Flammability

    Nil

    Max Use Temperature*,C (F)

    1260 (2300)

    Melting Point, C (F)

    1500 (2732)

    Modulus of Rupture**, MPa (psi)    as Received

    55 (8000)

       after 4 hrs at 600°C (1112°F)

    36 (5200)

    Compressive Strength**, MPa (psi)    at 2% Compression

    69 (10,000)

    Specific Heat, J/kg K (BTU/lb°F)    at 600°C (1100°F)

    1172 (0.28)

    Thermal Expansion,    RT- 400°C (752°F)

    6.0 x 10-6/C (3.3 x10-6/F)

    Linear Shrinkage^, %    after 4 hrs. at 1,200°C (2,200°F)

    1 – 2

    Moisture Content, % at 105°C (220°F)

    0 – 2

    Loss on Ignition, % at 982°C (1,800°F)

    1 – 2

    Hardness, Durometer “D”

    90

    Electrical Properties, Volume Resistivity, ohm-cm

    7.2 x 1011

    Surface Resistance, ohms

    2.3 x 1011

    Dielectric Strength, Volts/mil

    71

    Breakdown Voltage, kV    (1/8-in. thick piece)

    7.3

    Arc Resistance, sec.

    >420

    Thermal Conductivity**,    W/m K (BTU/ ft2  °F/in)    200°C (392°F)

    0.634 (4.40)

       400°C (752°F)

    0.636 (4.41)

       600°C (1,112°F)

    0.638 (4.42)

       800°C (1,472°F)

    0.638 (4.44)

       1000°C (1,832°F)

    0.643 (4.46)

       1200°C (2,192°F)

    0.648 (4.50)
