Foam Concentrate for Class B Fuel Fire Suppression

April 15, 2021

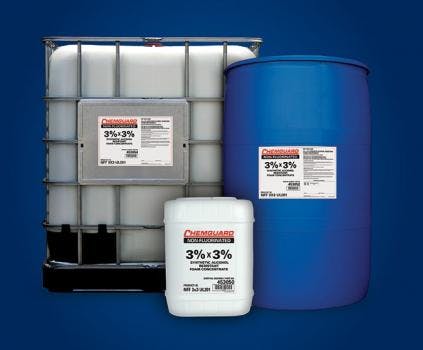

Chemguard NFF 3x3 UL201 Foam Concentrate is a patent-pending, Non-Fluorinated Foam (NFF) technology that provides fast, effective fire suppression on most Class B hydrocarbon and polar solvent fuel fires. With a longer drain time than most AR-AFFFs, this foam blanket also delivers excellent post-extinguishment burnback resistance and vapor suppression.



Chemguard passes the UL 162 synthetic foam concentrate protocol. It has also passed, under independent third-party witness, the UL 162 AR-AFFF test protocol for Type III hydrocarbon fuel at a 3-to-1 expansion ratio. This protocol’s more challenging foam application test rate of 0.04 gpm/ft2 (1.6 lpm/m2) is two-thirds that of the UL 162 synthetic, non-fluorinated foam protocol, and for an AR-AFFF this result would correspond to a minimum design application rate of 0.10 gpm/ft2 (4.1 lpm/m2).



The concentrate provides flexibility and ease of use for first response teams, as it allows for consistent three percent proportioning for both hydrocarbon and polar solvent fires. This means there is no need to adjust proportioning for different Class B hazards. With a 3-to-1 expansion ratio and viscosity similar to a 3x3 AR-AFFF, the foam concentrate is compatible with most standard response proportioning and discharge devices, reducing the need for significant hardware changes. The low expansion ratio provides greater throw distance for the foam, giving firefighters additional separation from the flames.



Chemguard NFF 3x3 UL201 concentrate is defined as a non-fluorinated firefighting foam concentrate, produced in equipment free from the use of PFAS chemistry. Since this product is free from any intentionally added PFAS chemistry and precautions have been taken to avoid PFAS contamination, it inherently complies with Directives (EU) 2017/1000 on PFOA and 2019/1021 (EU POPs directive) as a non-fluorinated product.



Chemguard NFF Concentrate helps protect people and property within industries like petroleum and chemical where spills and limited scale hazards require municipal and industrial response. It is also suitable for use in foam systems with Type II discharge devices.

  • Effective control and suppression on hydrocarbon fuel fires at expansion ratios as low as 3 to 1
  • Suitability of use with standard, non-aspirated nozzles and handlines for many applications
  • Viscosity similar to a quality 3x3 AR-AFFF, enabling application with most properly calibrated proportioning and discharge response devices
  • Class-leading, cross-functional performance for fire knock-down and control
  • Long-lasting foam blanket for extended post-extinguishment burnback resistance and vapor suppression
  • Flexible response with 3% proportioning in fresh, brackish or saltwater for both hydrocarbon and polar solvent Class B hazards
  • UL listed with various CHEMGUARD bladder tanks, proportioners, nozzles, and other discharge devices
  • Compliance with Directives (EU) 2017/1000 on PFOA and 2019/1021 (EU POPs directive) as a non-fluorinated product
