Fail-Safe Control Valve

The ARIA is designed for 1.5 million cycles and can withstand ambient temperatures up to 150°F, with travel speeds at 12 seconds per inch (nine seconds for ¾-in. stroke valves). It's equipped with an electric spring fail-safe (when opened or closed), robust enclosures with IP67/NEMA 4X enclosure, watertight ½-in. NPT fittings, and has split range input capability for 1/3-2/3 high/low applications.

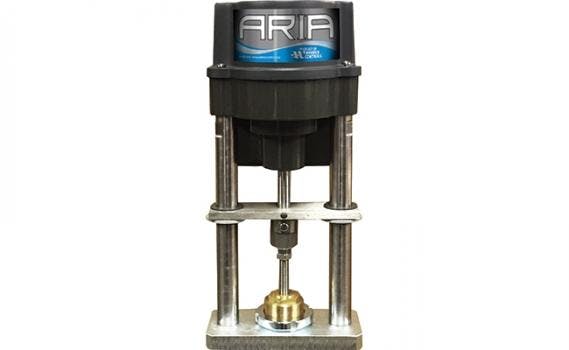

It's designed as either Spring-Fail-Safe upon Loss-of-Power, or as Fail-In-Place on Loss-of-Power, (model dependent.) The actuator is mounted onto the control valve via pillars and mounting base and attached via a yoke locknut. The actuator stem and valve stem are connected as well.

There are 4 models to choose from in the ARIA series:

1. ARA Model: 3-Way, Flanged Steel Mix Valves; ½ to 2 in.
2. ARB Model: 2-Way & 3-Way, NPT Threaded Bronze & SS Valve; ½ to 2 in.
3. ARC Model: 2-Way & 3-Way, Flanged, Cast Iron Valves; 2-½ to 6 in.
4. ARD Model: 2-Way, Flanged Steel Cage Valves; ½ to 2 in.

Thrust/Force450 lb.MAX Stroke1.3125 in.Pillar distance, C to C4 in.Weight, approx. kg 5.612.3 lb.Stroke Speed12 sec/inApproximate Height11 in.Approx. clearance above to remove cover3.25 in.Manual OverrideElectrically via 2 push buttonsOvervoltage/UndervoltageEngages Spring Fail, to Open or Closed
(depending on model)Loss of Control Signal Power Supply24V AC/DC/
optional wide-range
power supply (100 to 240V AC)Motor ProtectionElectronic motor current monitoring
with a safety cut-offDuty cycle as per IEC 60034-1,8S2 30 min/S4 1,200c/h - 50% EDPermitted ambient temperature-4 to 140°F (-20 to +60°C)Resolution200 Parts to full-scale strokeAccuracy±0.1 mA or ±50 mVLinearity ±1.0%Repeatability ±0.2%Internal fault monitoring Thrust, set value, temperature, power supplyBinary control24 to 230V AC for Binary Positioning
or ON/OFF serviceControl Signal and Feedback0-20 mA, 4-20 mA, 0-10V, 2-10V,
selectable (or split ranges)Mounting positionAny position, except below horizontalConduit entriesUp to 3 each 1/2 NPTEnclosure RatingNEMA 4X/IP67Cover material PolycarbonateGear case materialHigh-quality aluminum die casting,
powder-coated (60 ?m thickness)Pillar materialSteel 1.4104
