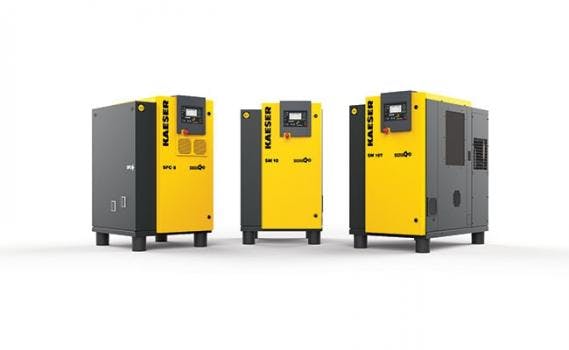

The SM 7.5, SM 10, SM 15, and SFC 8 models reduce customers' energy costs, improve overall performance, and extend service life. The SIGMA 06 airend with increased intake capacity combined with IE4 motors on the 10 and 15 hp models delivers up to 10% more flow than prior versions and as much as 43% more flow than comparable competitive models.
A dual-flow fan combined with an external-facing cooler results in approach temperatures as low as 7°F—improving the effectiveness of downstream dryers and filters in removing contaminants that impact product quality and tool life. The die-cast, sickle-shaped blade of the dual-flow fan reduces noise and cools both the drive motor and the interior of the machine for greater reliability.
SIGMA CONTROL 2 comes as standard for all models, combining reliable, energy-efficient control with access to operating and maintenance information. A built-in web server and communications ports allow easy remote monitoring. The SFC 8 models feature a separate drive cabinet with dedicated cooling to protect the frequency converter and maintain optimum operating temperature. Both the SFC control cabinet and SIGMA CONTROL 2 are tested and certified as individual components and as a complete system to EMC directive EN55011 for Class A1 industrial power products.
The SM Series is available in 7.5 to 15 hp with flows from 19 to 55 cfm and pressures up to 217 psig. To reduce floor space and installation time, these models are also available with integrated dryers and as AIRCENTERS with an integrated dryer, filter, and storage tank.
- Ready-to-run
- Fully automatic
- Super soundproofing
- Vibration dampening
- Powder-coated panels
- For ambient temperatures up to +115°F (46°C)
- Easy access to all service points
