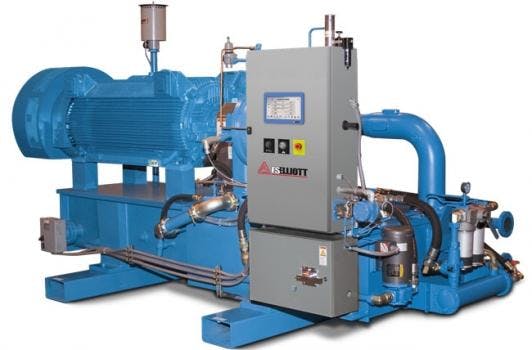

High-Pressure P400HPR Compressor

Sept. 19, 2023
FS-Elliott's centrifugal compressor provides high discharge pressures of up to 250 psig for high-pressure applications.

With the P400HPR compressor, users can achieve pressures of up to 250 psig with 3 compression stages, all within the P400 power range. Its aero design ensures peak performance and delivers substantial energy savings compared to conventional dry screw or oil-injected screw compressors.



With its high discharge temperature capabilities, the P400HPR is an ideal fit for Heat of Compression (HOC) drying applications, further enhancing energy savings within your compressed air system. Meeting ISO 8573-1, the 100% oil-free compressed air guarantees no oil transfer in the air stream.



The P400HPR can be optimized with the R1000 Control System or the PLC-based R2000 Control System featuring either a Siemens or Allen Bradley platform. Equipped with advanced features like a user-friendly interface, real-time data visualization, Energy Advisor, FS-Connect remote monitoring, and seamless integration with existing systems, the Regulus Control System empowers operators to optimize compressor performance, reduce energy consumption, and ensure reliable operation.

  • Low-pressure bearings provide extended bearing life
  • Simple, practical design with minimal rotating and wearing parts
  • Straight-through intercooler tube accommodates periodic cleaning, rather than replacement
  • Full-capacity auxiliary oil pump continues normal, safe operation in the event of a main oil pump failure
  • R1000 control system featuring a 9-in. full touch-screen display
  • Horizontally split gear case and internal components
  • ISO 8573-1 CLASS 0, 100% oil-free air minimizes downtime from oil contamination and eliminates the need for off-site condensate disposal
  • Engineered coatings designed for extreme conditions provide extended service life of internal and external surfaces, reduced maintenance, and corrosion prevention
 Flow 1,500 to 3,400 CFM (45 to 100 m3/min) Power 400 to 800 hp (300 to 600 kW) Pressure 40 to 250 psig (2.75 to 17.2 barg) Certifications ISO 9001:2015, ISO 8573-1 Class 0, ASME, CE/PED, GOST
