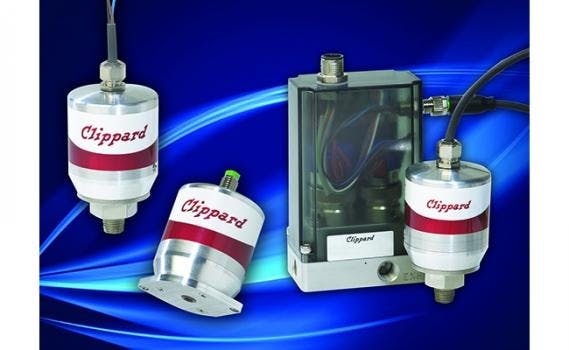

The Cordis Custom Calibrated Pressure Sensors are piezoresistive silicone pressure sensors that can either be used as feedback for Clippard’s CPC Pressure Controller or as a standalone transducer. Current optional outputs are 0 to 5V DC, 0 to 10V DC, and 0.5 to 4.5V DC. These transducers are conditioned, temperature-compensated, and offer a customized calibration specific to the application requirements. This allows for a full-scale accuracy of 0.25% over the calibrated range.
Multiple mounting options allow the user to place the sensor downstream or in a remote location from the pressure controller. This creates a quicker response and helps avoid any lag in the system. All wetted materials are oxygen compatible, and manifold mounting eliminates any possible contamination during assembly.
- Stand-alone unit or used in conjunction with Clippard’s Cordis Pressure Controls
- Downstream sensor feedback
- Multiple VDC signal outputs
- Static or dynamic applications
- Multiple electrical connection options
- Customizable pressure ranges and mounting options
- IP65 rated
- Temperature-compensated
