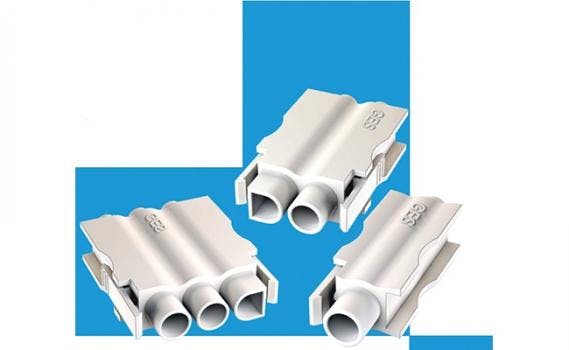

A series of miniature full plastic high voltage connectors ideal for internal cabling, the Series-VarioPro CL, can perform operating voltages of up to 13 kV DC. Due to its high-voltage resistance, this connector is also particularly well suited for unshielded connection tasks below 1,000 V.
These high voltage connectors come in a 1, 2 and 3-pin variant, are mechanically coded and provide a practical clip lock. The insulation materials excellent friction and wear-properties contribute to long durability and operational safety in a high voltage application environment. Silver- or gold-plated crimp contacts for AWG 26–14 are optionally available.
All variants of Series-VarioPro CL are suitable for either equipment installation or a levitated connection. These small high voltage connectors provide excellent performance, flexibility, and user-friendliness at minimal space requirements, weight and at low cost.
