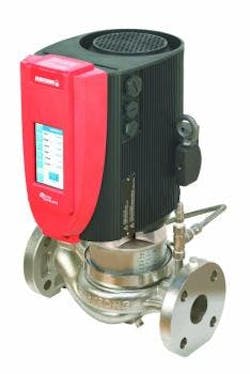

Design Envelope (DE) 4380 Vertical In-Line Pumps

Dec. 20, 2018

Armstrong Fluid Technology announced that its popular Design Envelope (DE) 4380 Vertical In-Line pumps are now also available in Stainless Steel. Ideal for domestic water and light industrial use, these pumps are certified for safe drinking water systems to the NSF-61 and NSF-372 standards.



The DE 4380 Stainless Steel Pumps can also be used in many light industry petroleum and chemical applications and offer advanced Design Envelope solutions which include DE Permanent Magnet (DEPM) motors, Parallel Sensorless Pump Control, built-in Wi-Fi connectivity, touchscreen control, and optional Pump Manager capability.



The Stainless Steel DE pumps offer:

  • Up to 70% energy savings
  • Permanent magnet motors
  • Built-in Parallel Sensorless control
  • BMS connectivity
  • Advanced hydraulic design with industry-leading ?ow efficiency
  • Control algorithms that review operations constantly and adjust output
  • Smaller footprint and lower total weight than traditional units



The DE 4380 is available in six models ranging from 1 to 2 hp, supporting performance levels from 10 to 1,185 gpm flow, and 10 to 75 ft head. It is designed for continuous low-pressure circulation, including water circulation, cooling towers, fountains, irrigation, spraying systems, condensate return, filtration, and many other applications.

  • Applications: HVAC-system pumping and control; general purpose pumping; industrial/process pumping and control (water or glycol-based)
  • Materials
    • Ductile iron e-coated casing
    • Stainless steel impeller
    • Sintered silicon carbide mechanical seal
  • Configuration: Onboard Intelligent Variable Speed controls with Sensorless control. Controls enclosure UL type 12 or UL type 4X for outdoor applications. 1 to 10hp range standard with DEPM motors that reduce losses by more than 20% over NEMA Premium efficiency. Network capable for remote performance management services.
  • Performance range: 15 to 450 USgpm (1 to 28 L/s) flow; 10 to 160 ft (3 to 48 m) head (composite curves available)
  • Temperature: 250°F (121°C)
  • Power Range: 0.25 to 10 hp (0.19 to 7.5kW)
  • Size: 1 to 6 in. (25 to 150 mm)
