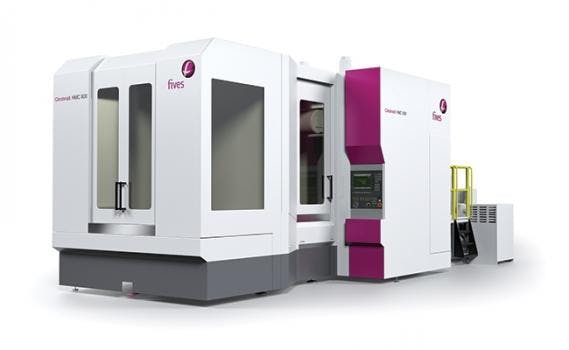

The Cincinnati HMC 800 is a high-performance HMC solution for demanding aerospace, oil & gas, and other industrial hard metal manufacturing applications that require precision machining.
It combines high spindle torque and power with superior dynamic machine stiffness, plus, the dual ball screws provide exceptional feed rates: 45m/min, and Acc/Dec rates of 0.5G. The bridge and saddle, designed with enhanced dynamic stiffness, provide optimum finish and tool life in hard metal applications.
The HMC is capable of 5-axis 5-sided complex part manufacturing. The 5-axis combines twin ball screw driven axes in XYZ, an infinite contouring B-axis table, and compact u-frame A-axis tilt spindle for full five-axis contour machining of complex part geometries. All combined, the HMC 800 delivers 5-sided machining capability with balanced speed, accuracy and range for complex part manufacturing, with reduced part setups for better quality and lowest cost-per-part.
Additionally, it is equipped with high-torque spindle options for hard metal processing, 2 speed - 6,000 rpm, and all spindles have external flood up to 250psi and internal thru-spindle coolant up to 1,500psi (HSK100A/KM4X). Tooling options include: HSK-100A, KM4X100, Big plus 50.
The Cincinnati HMC 800 – proudly designed and manufactured in the U.S.A. - will be on display at IMTS 2018, South Hall 338109.
