HCJ Series High Current Jumpers

Sept. 17, 2018

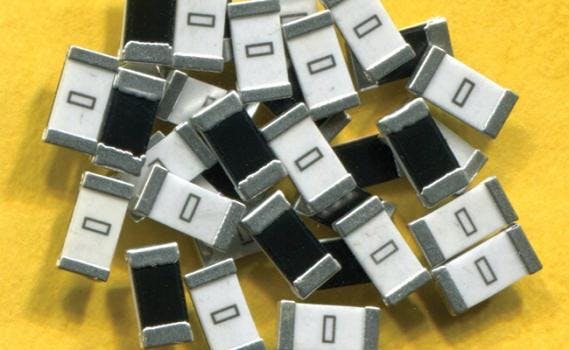

Stackpole's HCJ series has a maximum resistance of 3 milliohms.

The HCJ Series, a surface mount chip jumper, offers current ratings ranging from 14.2 amps for the 0402 up to 63.2 amps for the HCJ2512. In comparison, the typically rated current for a standard 2512 thick film jumper is 3 amps.



The HCJ0402 has a maximum resistance of 3 milliohms while the other sizes have a maximum resistance of 0.5 milliohms. This ensures much lower power dissipation for the HCJ compared to similar jumpers with a typical resistance of up to 50 milliohms. In addition, the HCJ is AEC-Q200 compliant.



The HCJ is available in chip sizes 0402, 0603, 0805, 1206, and 2512 and is 100% RoHS compliant and lead-free.
