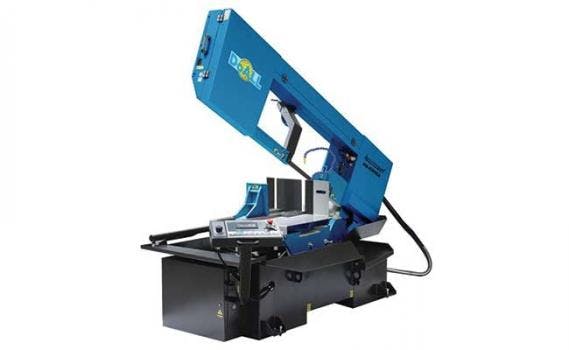

DS-600SA Dual-Miter Semi-Automatic Band Saw

May 30, 2018
DoAll's band saw is designed for cutting material both linear and at angles.

The general-purpose, dual swivel DS-600SA StructurALL semi-automatic, metal-cutting band saw is designed for cutting material both linear and at angles. Miter angle cuts are possible up to 60-deg. left and right. A digital readout comes standard and makes it easy to verify exact cutting angles.



Classified as a horizontal structural, scissor saw, the DS-600SA is ideal for machine shops, repair facilities, and industrial manufacturing plants that need to occasionally cut metal solid and profile material. A large variety of optional accessories are available to customize the machine for specific sawing requirements.

SAW BLADEWidth x Length1.5 x 212 in.BAND DRIVEMotor5 hpBand Speed65 to 328 fpmBand TensionHydraulicHYDRAULIC SYSTEMMotor Hp1 hpReservoir Size3 GallonCOOLANT SYSTEMMotor Hp0.7 hpReservoir Size5 GallonsINDEXERLength Per-StrokeNAMaximum Index Strokes LengthNARemnant LengthNAFLOOR SPACE DIMENSIONSW x L X H136 x 45 x 65 in.Material Pass Height31.5 in.Machine Weight2,646 lb.ELECTRICALVoltage Requirement460V-60Hz-3phTotal Amp Draw (FLA)9 Amps
