Semi-Automatic Dual Bandsaw

Feb. 25, 2021

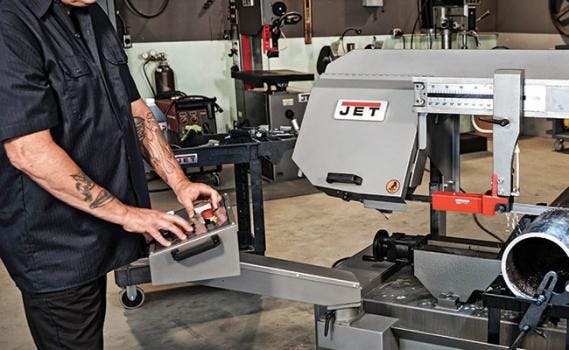

Offering a 12 x 20 in. cutting area, the Semi-Automatic Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut. This type of saw has a more robust structure and raises and lowers the entire sawing process up and down hydraulically on precision columns, providing a smooth motion throughout the sawing process.



This reduces vibration, resulting in a better quality cut and a long blade life. A Dual Column Bandsaw is the saw of choice for heavy-duty sawing applications where rigidity and strength are paid back with precise cuts and longevity.



A blade tension gauge helps to ensure the blade is in the correct cutting position and a built-in, self-propelled blade brush prevents chip build-up in blade guides, which feature an integrated coolant system.

Blade Speeds (SFPM)86,157,228,330Bed Height (In.)27
Band Saw Size/Wheel Diameter (In.)16Motor Power (HP)3
Cutting Capacity Width (In.)20.0000Square at 90 Degrees (In.)12
Cutting Capacity Height (In.)12.0000Motor (HP)3 HP, 230/460V, 1Ph
Round at 90 Degrees (In.)12Shipping Weight (lb.)1,628.0000
Blade Length (In.)155-1/2Coolant Pump Motor1/8HP, 230/4,660V, 3Ph
Blade Speed (SFPM)95 to 295Motor Phase3
Rectangle at 90 Degrees (In.)12 x 20Motor Voltage (V.)230/460
Throat Depth (In.)12 x 12Overall Dimensions (L x W x H) (In.)81 x 42-1/2 x 54-1/2
Weight (lb.)1,420.0000Prewired Voltage (V.)230
Blade Wheel Diameter (In.)16DriveMechanical Variable Speed
Blade Width (In.)0.043Net Weight (lb.)1,420.0000
Electrics3HP, 230/460V, 3PhGross Weight (lb.)1,628.000
  •
