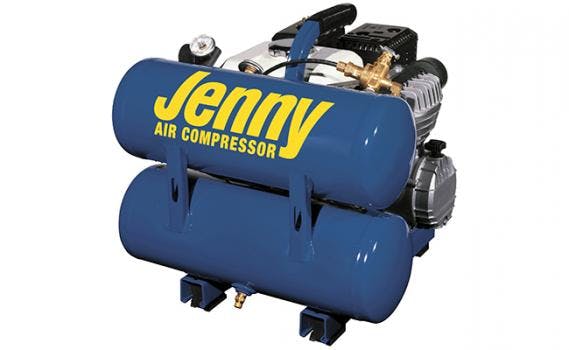

The AM840-4HG-HC4V is a lightweight and compact hand-carry compressor powered by a 4-hp Honda engine. Featuring a 4-gal twin-stack tank, the unit produces 4.7 cfm @ 100 psi (4.4 cfm at 125 psi) delivering high power in an extremely portable package, making it ideal for everyone from do-it-yourself homeowners to professional contractors.
The compressor features a single-stage, direct-coupled pump, built with a cast-iron cylinder for longer service life and an aluminum head to allow better dissipation of heat. Other standard performance components include a high-quality pilot valve, pneumatic throttle idle control, and special unloading valves to assist in motor/engine starting.
Designed for minimal and simplified maintenance, the new compressor is built with a pressure relief safety valve, an air-line regulator, and easy to reach manual tank drains. The tank and frame assembly are constructed of heavy-duty powder-coated steel, and integrated anti-vibration feet cut down on unnecessary movement and wear during operation. To help ensure thorough lubrication of the compressor’s pistons, crankshaft, bearings, rings, and cylinders, the compressor is shipped with an initial oil fill of Jenny “Ultimate Blue” compressor-pump oil.
- Lightweight, compact, and extremely portable
- Single-stage, direct-coupled, oil-lubricated pump
- Cast iron cylinder for extended pump life
- Aluminum head for better heat dissipation
- Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
- Canister inlet filter with replaceable filter elements
- Forced ventilation cooling system
- Powder coated heavy duty steel tank and frame assembly
- Protectively mounted fittings
- Anti-vibration feet
- Airline regulator and two gauges for line and tank pressure
- Pressure relief safety valve
- Manual tank drain(s)
- Special unloading valves to assist in motor/engine starting
