132M HC Wrap-Around Labeler

May 14, 2021
HERMA 132M HC Wrap-around Labeler can be retrofitted for continuous operation through new modules that can be retrofitted onto existing machines.

Ideal for expedited, high-volume vial production, HERMA 132M HC Wrap-around Labeler can be retrofitted for continuous operation.



The continuous operation is made possible by two new modules—EasySplicer and EasyCutter—that can be retrofitted onto existing machines. The add-ons allow label and backing paper reels to be changed or disposed of without production interruption. Considering that reels on high-speed labelers such as the HERMA 132M HC require replacement approximately every 10 minutes, the result is improved output through downtime elimination.

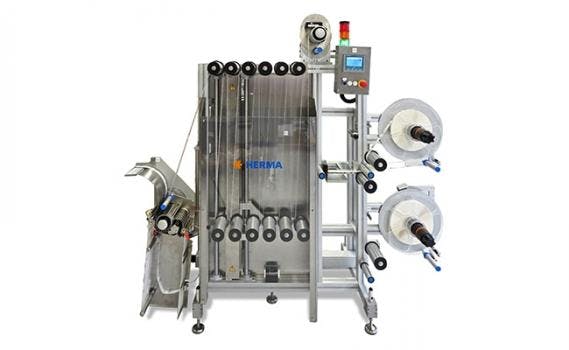

With the EasySplicer and EasyCutter modules, label reels can be changed, and the backing paper reels disposed of, without the machine coming to a standstill. With the EasySplicer, two label reels are arranged vertically, one above the other. The active label web is guided over a splicing table, where it is fixed at the end of the label web. Since the EasySplicer is equipped with a label buffer, the labeler will continue to run even when it reaches the end of the label web. An operator can then execute the splicing process in such a way that the new label web is spliced to the fixed web before the buffer runs out. If the operator should fail, the machine stops automatically and can be manually restarted. Meanwhile, the EasyCutter vacuums up the empty backing paper and chops it into shreds that are collected automatically, and can be recycled. The add-on eliminates the need for manual removal of rewinded backing paper.



From the outset, the HERMA 132M HC Wrap-around Labeler was designed to meet the stringent requirements of round pharmaceutical and healthcare products, including glass vials produced in high quantities. These also include measures for the optimization of overall system efficiency, such as innovative rotary tables, digital position indicators, and format sets that can be changed without tools for fast format changes, as well as operation of the entire machine, including the camera and printer, via an industrial panel PC (IPC).

Labeling type:

Wrap-around labeling

Product specifications:

Cylindrical, stable

Product dimensions:

14.75 - 100 x 36 - 230 mm (D x H)

Label dimensions:

10 - 80 x 30 - 265 mm (B x L)

Capacity:

Up to 400 products/minute

Power supply:

400 V 3-phase TN-C-S supply, 50 Hz

Compressed air supply:

6 bar

Printer:

Various hot-foil, thermal transfer and laser printers (optional)

Components:

Control panel with 12-in. touchscreen, signal column, conveyor belt, side guides for products, infeed queue sensor, starwheel, an applicator with digital position indicators for all mechanical adjustments, printer, print check, label presence check, product reject station, outfeed jam sensor, transparent machine guard, Siemens control, interface for remote maintenance

Options:

Rotary table, check or rejection of fallen products, code check, aligned wrap-around labeling, Allen-Bradley control, in-process control, data providing for batch report, audit trail, qualification



  • Primarily designed for round pharmaceutical products, such as glass vials and the corresponding high batch sizes in the healthcare industry
  • Wrap-around labeler 132M HC for healthcare products with a high-speed output of up to 400 products per minute
  • High labeling speed with extreme precision thanks to the new HERMA 500, our high-performance applicator
  • It is completely equipped for all healthcare tasks, including a selection of various printing and control systems, an patented automatic label return with cross check, as well as one of several possible product reject stations
  • New innovative HERMA rotary tables, electronic position indicators and format sets that can be exchanged without tools for fast format changes ensure maximum overall equipment effectiveness
  • The 132M HC can be easily configured for numerous industry applications - even without printers and control systems in the version 132M
  • Optionally available with the clocked starwheel in the version 040M HC that is exactly aligning the labels with a salient product feature
