FA1 Pick and Place Feeder

Sept. 22, 2022
The Pharmaworks FA1 can convey even challenging products more gently with fully horizontal vibratory feed tracks.

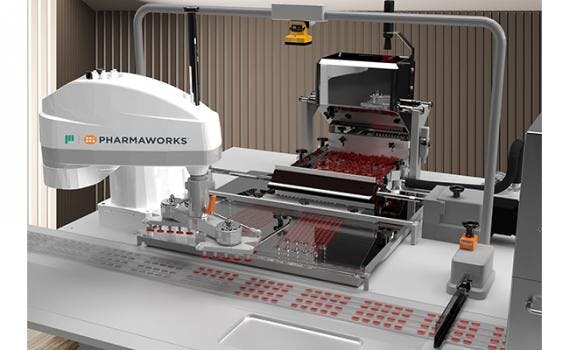

The FA1 pick and place feeder for blister machines can feed even difficult-to-handle solid-dose pharmaceuticals and nutraceuticals such as fragile, unusually shaped, and orally dissolving products. It has a new vibratory feed track to help achieve good final product quality. The enhanced FA1 achieves new levels of gentle handling, virtually eliminates particulates from reaching the blister web, and accurately positions products within the blister cavities. Featuring a cGMP design and running up to 80 cycles per minute, the FA1 can be integrated with small to medium-format size blister machines.



The enhanced FA1 can convey even challenging products more gently with fully horizontal vibratory feed tracks. By leveraging vibratory motion, the new system has also eliminated the chance of ‘shingling,’ in which one solid dose gets jammed under another and creates a blockage. Once products have been conveyed to the end of the feed track, the FA1’s servo-driven, pick and place vacuum head positions an array of solid doses, correctly oriented, into their blister cavities.



Ideal for smaller batches, the enhanced FA1 can change over to a new format in as little as three minutes with no tools required and minimal change parts. Product recipes can be accessed via its PC-based color touchscreen HMI.To feed multiple types of products into a single index, such as a nighttime/daytime cold medicine combination pack, the enhanced FA1 can be equipped with two or more paddle boxes and bulk hopper systems.

  • Speed (max): 80CPM
  • Max feed area length (index): 10.6 in. (270 mm)
  • Max feed area (width): 6.7 in. (170 mm)
