Versatile Electronic Pressure Switch Features All Solid State Sensing

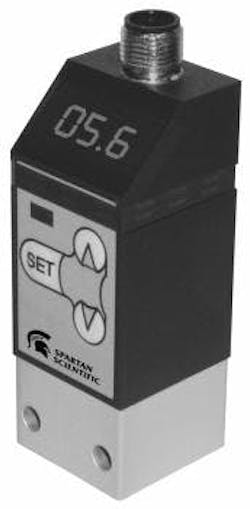

The PSE10 from Spartan Scientific is a fully programmable electronic pressure switch featuring solid state sensing, programming and switching. The PSE10 uses the latest in pneumatic and hydraulic sensing technology and because it has no moving parts, this switch has an extremely long life. With an IP67 protection class, the PSE is perfect for use with foreign materials and anywhere high humidity is an environmental issue. An onboard digital pressure readout programmable for either conventional or inverted viewing and a 360 degree viewable indicator light make the PSE10 suitable for many applications. The PSE10 is available in versions from vacuum to 6000 psi.

Additional features include quick connect electrical connection, fluid connection of ¼” NPT or BSP, short circuit protection and either normally open or normally closed switching. All Spartan Scientific products are manufactured in the USA to the highest quality standards.• Current Consumption w/o Switching Output: <80 mA • Switching Current SP1 1.3 Amp. • Switching Current ERROR/SP2: .3 Amp • Switchlogic Programmable: N.O. / N.C. • Protection Class: IP67 • Temperature Range: -20°C to 70°C • Temperature Range Medium: -20°C to 70°C
