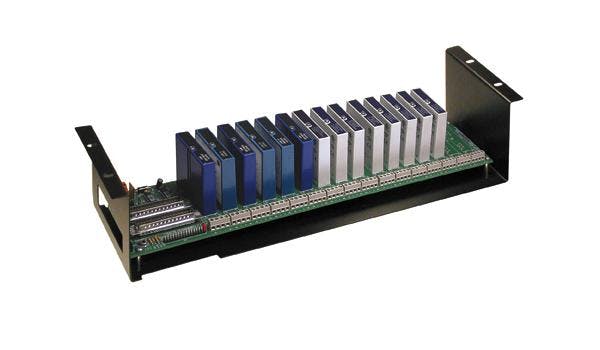

16-Channel Isolated Analog Signal Conditioning Card - OMB-DBK207 and OMB-DBK207/CJC

Each of 16 channels on OMEGA's new signal conditioning cards-the OMB-DBK207 and OMB-DBK207/CJC-accepts an OM5 (5B) isolated analog input module. With DaqView software, a user can easily configure any channel to measure temperature, strain, volts, current or frequency. The cards are designed for use with OMB-LOGBOOK-300, OMB-DAQBOARD-2000 Series and OMB-DAQSCAN-2000 Series products. Screw terminals allow easy connection of field signals, and there are sockets for the current conversion resistors supplied with OM5 (5B) current I/O modules. Up to 16 cards can be daisy-chained for a maximum capacity of 256 inputs. The OMB-DBK207/CJC has cold junction compensation for obtaining linearized and compensated values from OM5 (5B) thermocouple modules. Both cards use a 5 Vdc power supply. Price starts at $249.<

* Module Capacity: 16, input only, OM5 (5B) compatible modules * Cable: OMB-CA-37-x and OMB-CA-195 * DC Input Fuse: 3 A, reset type * Power Requirement: 5 Vdc, regulated * Operating Environment: 0 to 70°C (32 to 158°F) * Relative Humidity: 95% RH non-condensing
