Emergency Safety Switch

Feb. 7, 2018
STEUTE's safety pull switch has an operation temperature range of -25º to + 70ºC.

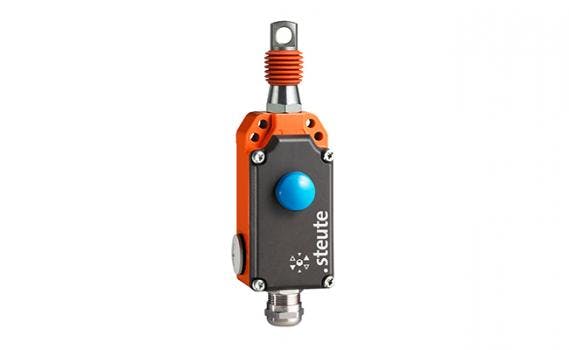

STEUTE's Series ZS 71 emergency pull wire switch is equipped with snap-action, NC positive-break contacts, providing a safe, reliable means for initiating an emergency stop along the length of the installed pull-wire.



Switching function occurs if actuating wire is pulled or breaks. Its' 35 meter reach, integral pushbutton reset; rugged, die-cast aluminum, powder-coated housing; and IP 69K ingress protection rating, make it suitable for a wide range of applications.

Features:
  • Wire pull and breakage detection
  • Maximum pull wire length: 35 m
  • Switching System: Snap-action, positive-break NC contacts
  • Contacts: 2NC and 1 NO with double break
  • Contact Material: Silver
  • Connections: Screw connection terminals
  • Rugged, corrosion-resistant, powder-coated,die cast aluminum housing
  • Ingress protection ratings: IP66, IP67, IP69 and IP69K
  • Operating temperature range: -25º to + 70ºC
  • Integral pushbutton release
  • Mechanical Life: > 100,000 operations
  • Certifications: cCSAus
  • EN ISO 13849-1, EN ISO 13850 and EN 60947-5-1 Compliant
