PUMA V8300 Turning Center Offers Automatic Tool Changing

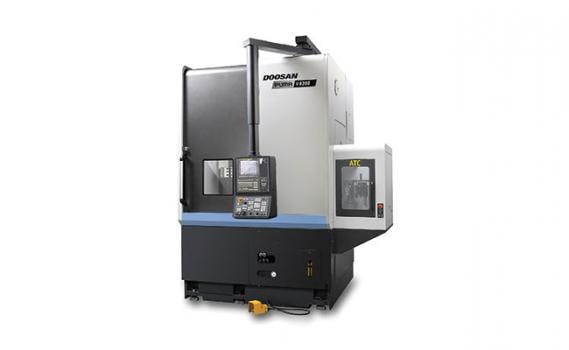

PUMA V8300 Vertical Turning Center with an automatic tool changer (ATC) is a new generation 15-in. class vertical turning center with a larger work zone, increased rigidity and enhanced user convenience. It is available in right or left hand versions.
The PUMA V8300 offers the largest work zone in its class, with a maximum turning diameter of 830 mm (32.7 in.), a maximum work height of 750 mm (30 in.) and a swing-over-saddle of 740 mm (29 in.).
The adoption of a standard 37kW (50 HP) high power spindle motor and a column integral-type box guide structure ensures heavy duty, stable, dependable turning performance. The high-reliability, servo-driven turret maintains high accuracy during long-term machining. The PUMA V8300 has a maximum spindle speed of 2,000 rpm and maximum torque of 2,592 Nm (1912 ft-lb).
The PUMA V8300 comes with an optional 12 station ATC magazine, a feature not usually found on turning centers in this class. The ATC supports Capto C6 tooling and is available for all 12 stations of the turret. The tools remain safely out of the way when not in use, providing superior tool management and much easier maintenance.
The PUMA V8300 Series is designed with a slanted bed and an improved flushing function for unhindered chip disposal, and expanded coolant system features a 290 liter (77 gallon) tank. It also has an ergonomically designed operation panel that swivels and is height-adjustable and movable for enhanced user convenience.
(30min/cont.)
