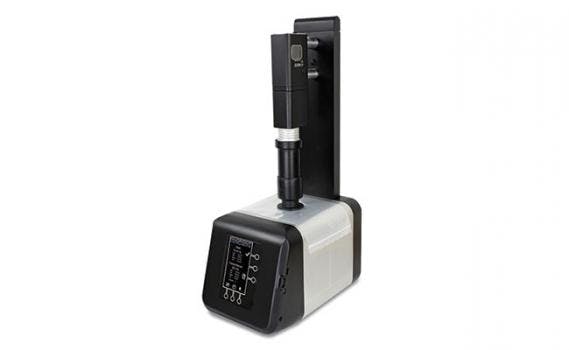

Novo-Haze TX Measures Total Transmission and Haze

Dec. 8, 2017
Paul N. Gardner Company, Inc. offers a device that measures the optical quality of plastic films and other transparent materials.

The Novo-Haze TX offers fast and accurate measurement of the optical quality of plastic films, and other transparent materials. This instrument measures total transmission and haze according to ASTM D1003 (CIE C), the most important standard used in most QA applications.



Manufactured in direct response to industry requirements, the Novo-Haze TX is offered at huge savings compared to other instruments which contain additional superfluous test methods.



The instrument features an intuitive user friendly interface which minimizes the test time and makes it an ideal choice for both QC and R&D. Uncompromising design, high quality materials, and European manufacture make the Novo-Haze TX the ideal choice for any laboratory or QA environment.



The Novo-Haze TX has an intuitive touch sensitive interface making it incredibly easy to use. There are no complicated menu structures - all measurement functions are accessible from one screen. Single touch button or the footswitch can be used to initiate single measurements or automatic measurement mode. At the end of the test the percentage of Haze and Transmittance are shown on screen.



If multiple tests are performed, statistics for the batch will be displayed and can be printed to the results printer to keep with retained samples.

Haze:

Repeatability: ± 0.05 units (standard deviation)
Reproducibility: ± 0.04 units (standard deviation)
Resolution: 0.01%
Transmission:Repeatability: ± 0.2 units (standard deviation)
Reproducibility: ± 1.0 units (standard deviation)
Resolution: 0.01%
Measurement Area:ø 14 mm
Measurement Range:0 - 100 %
Memory:>10,000 via USB stick
Internal memory: 99 (for statistical analysis only)
Operating Conditions:Operating temperature: 15 to 40°C
Storage temperature: 0 to 50°C
