Drive Excels Where Inverter Technology Was Once Considered Too Costly

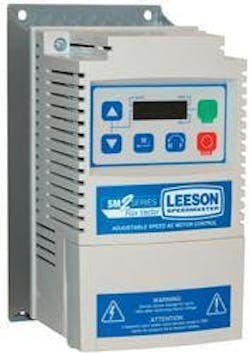

LEESON has introduced a SM2 SERIES FLUX VECTOR™ Drive. With it’s price, it’s flexibility and a power range of up to 25Hp, the SM2 SERIES FLUX VECTOR™ drive excels in environments where inverter technology was once considered too costly, including packaging machinery, food processing machinery, material handling/conveying systems and HVAC systems.The SM2 SERIES FLUX VECTOR™ carries all the features required by demanding applications including four modes of operation (V/Hz, Enhanced V/Hz, Vector Speed, and Torque), high starting torque, auto tuning, advanced low-speed control, and dynamic speed regulation. Other Specifications include: • Horsepower: 1 to 25HP (0.75 to 18.5kW) • Supply Power: Single Phase: 120, 208, 220 or 240VA C Three Phase: 208, 240, 400, 480 or 600VA C 50/60 Hz • Output Frequency: 500 Hz Std., 1000 Hz Optional Motors: Designed for operation with vector duty rated induction motors. Rated for input voltages of 120, 200, 230, 400, 460, or 575VAC from 0 to 240Hz. Enclosure: NEMA1, IP21, - 10 to 55°C, 2.5% derate per °C above 40°C Standard Features: • Easy Set-Up and Operation, Program the Vector control in one of four convenient ways. • Easy to Use Keypad & Display 6-Button Interface • Vivid Illumination • Acceleration/Decelaration Profiles LEESON Electric, headquartered in Grafton, Wisconsin, offers AC motors, DC motors, sub-fractional horsepower motors and gearmotors, mechanical gear drives, and AC and DC electronic drives. LEESON products are sold to original equipment manufacturers and distributors by a network of independent manufacturers’ re p resentatives, sales offices and international agent distributors. LEESON is a subsidiary of Regal-Beloit Corporation (NYEX: RBC). * Easy set-up operation * 4-digit LED display * 4- acceleration profiles * 0-500 Hz – Output frequency, 1000 Hz Optional * Eight preset speeds * PID Modes – Direct or Reverse Acting * Forward/Reverse * Open Loop Flux Vector (Speed or Torque) * NEMA 1 – IP21 Enclosure * Multiple braking functions * Speed commands – keypad, jog or floating point control * Two independent accel and decal ramps * Easy to use keypad & display 6-button interface * Voltage monitoring * UL, cUL, CE listed
