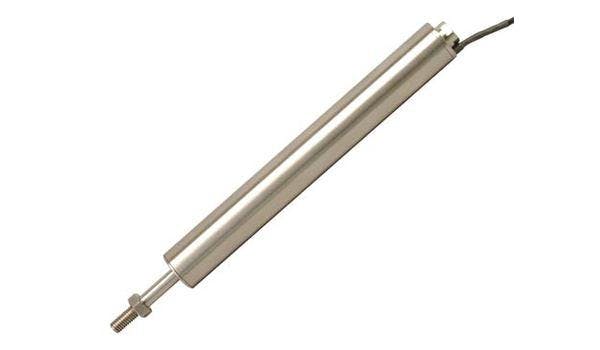

OMEGA's new output displacement transmitters have improved IP67-rated sealing coupled with polymer guides with rigid carriers. These transmitters have a less than 0.2% linearity as well as rugged stainless steel body construction making them especially accurate and reliable in wet and corrosive conditions. Output options are either direct-acting 4 to 20 mA or reverse-acting 20 to 4mA. Recommended for industrial use and automotive testing applications.Linearity: <0.2% FSO Excitation Voltage: 10 to 30 Vdc * Output Ripple: 0.02% FSO * Bandwidth: 500 Hz (-3 dB) * Storage Temp: -20 to 85°C (-4 to 185°F) * Operating Temp: 0 to 65°C (32 to 149°F) * Vibration (Sinusoidal Frequency): 10 to 50 Hz: 1 to 10 g rms linear Amplitude 50 Hz to 1 kHz: 10 g rms Amplitude * Shock: Drop Testing: 1 m (3') onto hard surface Topple Testing: 10 times each end onto hard surface * Cable: PFA, 2 m (6') long * Core Material: Nickel-Iron
