High-Voltage Meter

Oct. 13, 2018

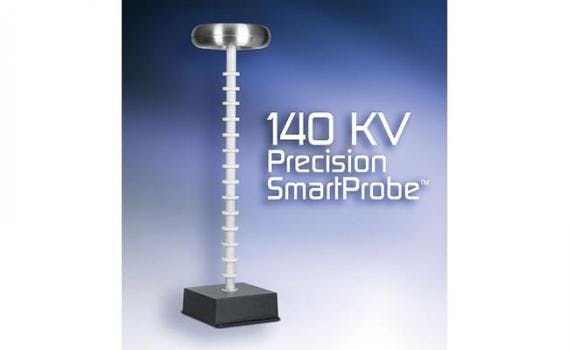

Vitrek, the  leader in high-voltage test and measurement equipment, introduces the HVL-150 SmartProbe? that expands the measurement range of the company’s Model 4700 Precision High-Voltage Meter to 140 KVDC / 100 KVAC(rms). The HVL-150 benchtop probe features Vitrek’s proprietary ultra-low thermal coefficient attenuator technology that minimizes the effects of self-heating to maintain optimum accuracy. In addition, the probe’s low capacitance enhances AC measurement performance.



The Vitrek 4700 HV meter offers high performance while providing instant, direct, high voltage measurement in a portable, compact and rugged benchtop enclosure, outperforming traditional high voltage dividers. The 4700 Precision High-Voltage Meter offers exceptional measurement accuracy (0.03% of reading + 0.03 V) and resolution (10 mV) for direct inputs up to 10 KV. For higher-voltage applications, Vitrek’s SmartProbes are interchangeable and are offered with DC ratings of 35 KV, 70 KV, 100 KV and now, 140 KV. Vitrek SmartProbes store precision calibration data, which is downloaded when plugged into a 4700 HV Meter.



To ensure the best possible measurement accuracy, the 4700 High Voltage Meter performs over 40,000 readings per second, which are then filtered, sub-sampled, scaled and offset corrected. The 4700 provides very low frequency AC readings down to 0.01 Hz, as well as peak-to-peak, crest factor and fundamental frequency measurement. Available G series probes offer extremely high input impedances for electrostatic voltmeter applications. Vitrek 4700 HV meters and SmartProbes all come with an ISO 17025 accredited calibration report.
