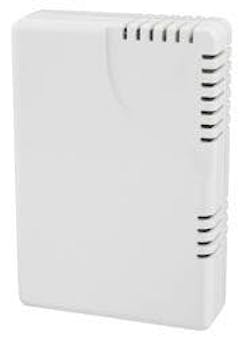

The Series CDW Wall Mount Carbon Dioxide and Temperature Transmitter combines accurate C02 measurements with a passive temperature output. The Non-Dispersive Infrared (DNIR) sensor continuously updates the calibration through a proprietary logic feature, which limits the amount of error due to drift. The CDW series is ideal for building automation systems to help control the fresh air intake in a room.• Range: 0 to 2000 PPM CO2. • Accuracy: ±100 PPM @ 22°C. • Temperature Dependence: 0.2% FS per °C Stability < 2% of FS mover life of sensor. • Pressure Dependence: 0.13% of reading per mm of Hg. • Response Time: 3 to 5 minutes for 90% step change. • Storage Temperature: -4 to 158°F (-20 to 70°C). • Power Consumption: 1.75 VA average 3.25 VA peak. • Sensor: Non-Dispersive Infrared Sensor. • Output: 0 to 10 VDC for CO2; 20K Ohm NTC Thermistor for temperature. • Weight: 0.5 lb (227 g). • Agency Approval: CE. • • Range: 0 to 2000 PPM CO2. • Accuracy: ±100 PPM @ 22°C. • Temperature Dependence: 0.2% FS per °C Stability < 2% of FS mover life of sensor. • Pressure Dependence: 0.13% of reading per mm of Hg. • Response Time: 3 to 5 minutes for 90% step change. • Storage Temperature: -4 to 158°F (-20 to 70°C). • Power Consumption: 1.75 VA average 3.25 VA peak. • Sensor: Non-Dispersive Infrared Sensor. • Output: 0 to 10 VDC for CO2; 20K Ohm NTC Thermistor for temperature. • Weight: 0.5 lb (227 g). • Agency Approval: CE. •
