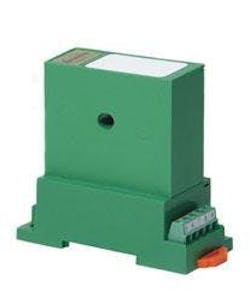

CR Magnetics, Inc. has introduced a new series of Power Factor Transducersspecifically designed to sense the Phase Angle difference between AC Currentand Voltage signals. The new CR6300 series of Power Factor Transducers allowcorrecting of power factors to save on utility energy costs. They will perform in awide variety of applications including Motor Loading, Measure Timing andCorrecting Power Factor.The new CR Magnetics CR6300 series Power Factor Transducers are availablein three basic model styles: CR6310-500V – 0-5 VDC Output,CR6311-500V – 0-10 VDC Output, and CR6320-500V – 4-20 mADC Output.Custom styles can be provided.Features include the ability to measure -90 to +90 Phase differences. Bandwidthis 5KHz and input ranges can be extended using CT’s and PT’s. Outputs aredirect to data acquisition, PLC’s, display and computer systems. The new CR Magnetics CR6300 series Power Factor Transducers have windowopenings to accommodate current carrying wires up to .26” dia. They offer up to500V input of voltage and up to 25A of current. The units are powered by asingle 24 VDC power supply. Package size is 3.26” L. x 1.42”W. x 2.99” H.They can be mounted on 35mm DIN rails or surface panels.
