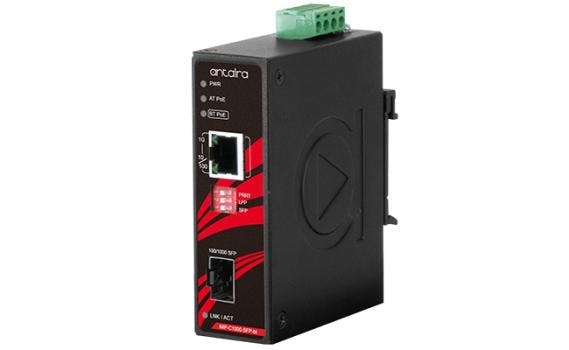

    IMP-C1000-SFP-bt-T and IMP-C1000-SFP-bt-24-T Gigabit Single-Port Media Converters

    Aug. 4, 2022
    Antaira Technologies' IMP-C1000-SFP-bt-T and IMP-C1000-SFP-bt-24-T are certified by Florida Department of Transportation's APL.
    Related To: Antaira Technologies
    6667502e74c1d40008e40263 830 350

    The IMP-C1000-SFP-bt-T and IMP-C1000-SFP-bt-24-T Gigabit single-port media converters with IEEE 802.3bt 90W PoE++ are ideal for industrial networks that require long distance, high bandwidth connectivity. Both converters give network administrators the means to interconnect long-distance fiber networks to copper-based 10/100/1000Base-T Ethernet with minimum cost and complexity.



    Both serve as Power Sourcing Equipment capable of delivering an impressive 90W to PoE-complaint devices, therefore enabling the converters to accommodate power-hungry PTZ IP cameras and WAPs.



    Identical in design, the IMP-C1000-SFP-bt-24-T differs from the IMP-C1000-SFP-bt-T in that it features 12~55VDC power input, while the IMP-C1000-SFP-bt-T supports 48-55VDC. Both converters extend LAN cabling distances using SFPs selectable to meet application requirements for the fiber network. SFP-S120-T allows 74 mile fiber networks while also enhancing signal immunity to electromagnetic emissions and elevating network bandwidth capacity to Gigabit speed through the single dual-rate SFP slot.



    The converters feature an IP30 rated metal enclosure and an extended operating temperature range of -40 to 167°F (-40 to 75°C), making them ideal for factory automation, security, Intelligent Transportation Systems, power/utility, water wastewater treatment plants, and other extreme industrial or ambient weather environments. Although rugged, the devices are exceptionally compact so that they conserve space on a DIN-Rail inside the communications cabinet. The Florida Department of Transportation has certified both models for its Approved Products List after validating specification met requirements, standards, and criteria.



    The patented Power Remote Reset Technology function allows the user to reboot the media converter’s PoE port to power cycle a remote unresponsive powered device from the nearby switch.

    IMP-C1000-SFP-bt-T

    • 1-Port 10/100/1000Tx RJ45 with IEEE 802.3bt Compliant PoE
    • 1-Port 100/1000Fx SFP Slot
    • Link Fault Pass-Through (LFP) Function Support
    • PD Remote Reset Technology (PRRT) Function Support
    • IP30 Rugged Metal Case Design
    • Power Input: 48~55VDC in 4-Pin Terminal Block
    • DIN-Rail or Wall Mountable
    • Extended Operating Temperature Range: -40 to 167°F (-40 to 75°C)

    IMP-C1000-SFP-bt-24-T

    • 1-Port 10/100/1000Tx RJ45 with IEEE 802.3bt Compliant PoE
    • 1-Port 100/1000Fx SFP Slot
    • Link Fault Pass-Through (LFP) Function Support
    • PD Remote Reset Technology (PRRT) Function Support
    • IP30 Rugged Metal Case Design
    • Power Input: 12~55VDC in 4-Pin Terminal Block
    • DIN-Rail or Wall Mountable
    • Extended Operating Temperature Range: -40 to 167°F (-40 to 75°C)
