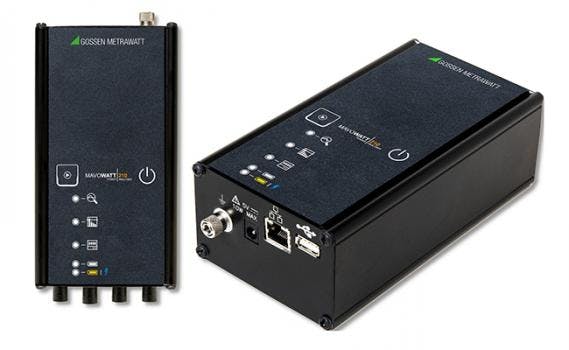

MAVOWATT 210 Power Quality Meter

Aug. 4, 2022
The battery-powered MAVOWATT 210 power quality meter from Gossen Metrawatt enables cost-efficient energy and mains data logging.

At only 1.41 lb. (0.64 kg), the MAVOWATT 210 is a highly compact three-phase power quality meter. The bidirectional datalogger precisely measures all parameters relevant for ensuring the quality of the energy supply both on the power utility and consumer side. Reductions in power quality such as voltage drops, dips or interruptions and overvoltages are detected with a resolution of 1/2 cycles according to IEC 61000-4-30, and harmonics are recorded according to IEEE 519-2014/IEC 61000-4-7.



The device, which has four voltage channels for direct measurement up to 600 VRMS (CAT III) and four current channels, is suitable for all relevant performance parameters such as voltage, current, active, reactive, and apparent power. In addition, it serves as a high-precision bidirectional four-quadrant measuring device for energy flow detection. Automatic detection of the type of connection and indication of connection errors via color-coded LEDs ensure safe operation at all times.



The MAVOWATT 210 allows for up to seven hours battery-powered operation in any local or remote system. For visualization and evaluation, an integrated Ethernet interface with a web server enables real-time access to all present and previously logged measured values. Operators can create analyses and reports using the Dran-View XP PC software, which is specially adapted to the MAVOWATT 210. Standard equipment furthermore includes three Rogowski coils with a measuring range up to 500 A, four voltage cables, and a power supply unit.

  • Especially compact design
  • Long battery life for all-day measurement
  • Extremely lightweight: 1.41 lb. (0.64 kg)
  • Power quality trigger thresholds can be programmed as desired
  • Energy flow logging – import and export
