Slim, 5-Axis Vise for Precise Machining

March 16, 2021

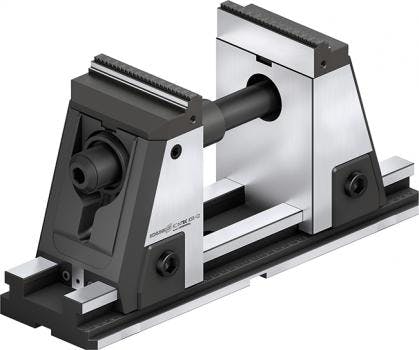

The KONTEC KSX-C2, a 5-axis vise, provides new opportunities for high-precision, 6-sided machining. With a striking, upwardly tapered outside contour, the KONTEC KSX-C2 improves accessibility with standard tools. With its active jaw pull-down, it achieves excellent results in terms of plane-parallelism and perpendicularity, creating ideal preconditions for challenging 6-sided machining.



The vise is also setting benchmarks with its adjustable center, even when it comes to set-up times: due to a tool-free jaw quick-change system, reversible jaws for enlarging the clamping area as well as a unique basic jaw stroke of 130 mm, the vise can be quickly and precisely converted for a new range of parts. A broad range of quick-change jaws is available for this purpose. Moreover, the clamping range can be enlarged with a standardized piston rod extension.



A torque wrench is used for continuously adjusting the clamping forces of the KONTEC KSX-C2, and a maximum of 40 kN at a torque of 120 Nm can be achieved. Therefore, this expert vise in 6-sided machining has a lot of power for safe holding—even in the case of minimum clamping surfaces. The forces for clamping sensitive parts can be finely adjusted. The long guiding system and the arrangement of the clamping mechanism ensure a rigid, dimensionally stable set-up. The integrated elastomer damping absorbs occurring oscillations during machining, resulting in excellent workpiece surface quality and tool service life. The drive and adjustment mechanisms of the 5-axis vise are fully encapsulated, making it perfectly equipped against chips, dirt, and coolant.



The KONTEC KSX-C2 is maintenance-free and is offered in four base body lengths (330, 430, 500, 630, and 800 mm) and in two different heights (175 and 214 mm). It seamlessly fits into the modular system for high-efficient workpiece clamping from SCHUNK and can be quickly combined with the VERO-S quick-change pallet system or exchanged at a maximum repeat accuracy on the machine table. The necessary clamping pins can be directly integrated into the base body of the 5-axis vise without requiring adapter plates. As clamping is done by tension, no bending load occurs on the base body if a quick-change pallet system is used.

  • Active jaw pull-down
  • Jaw quick-change without tools
  • Adjustable clamping center
  • Long basic clamping stroke with 130 mm
  • Extendable clamping range
  • Optimal accessibility
  • Integrated elastomer damping
  • Wide range of applications
  • Wide jaw program
  • Clamping by tension
  • VERO-S interface
