Single-Axis Gun Drilling Machines

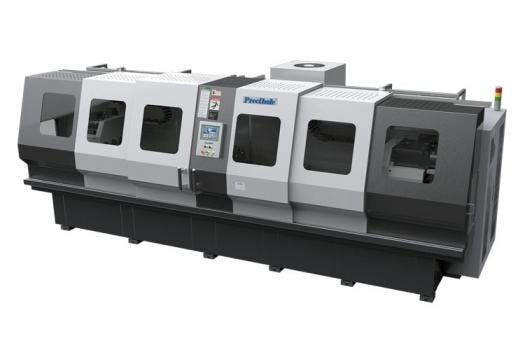

Precihole Gun Drilling Machines are built to manufacture high-precision parts and can be customized to suit high volume requirements. GVN gun drill models are offered with 1 to 4 spindles providing excellent straightness, surface finish, and bore tolerance. Length to diameter ratios of up to 125 are possible.



The machine permits deep drilling of four barrels simultaneously. An open machine configuration facilitates robot access, minimizing operator involvement and supporting 24/7 operation. Depending on individual model configuration, the machine can drill IDs from 0.04 to 1.57 in. and barrel stock from 0.4 to 4.0 in. OD.

• Component counter rotation to ensure excellent straightness
• Use of ball screw and servo drives for linear motion
• Multiple tool steady rests to provide solid tube support
• Option of Hydraulic Cone / Self-Centering Chucks for proper part clamping
• High-pressure coolant  and fine filtration system
• Oil chiller and automatic lubrication
• Mitsubishi / Siemens PLC controls with touch screen HMI
• Integrated unibody design to reduce overall machine footprint to save valuable floor space
• GVN06C model has ultra high-speed precision motorized spindle
• Tool monitoring system to ensure tool breakage prevention

ITEM/MODELGVN06GVN08GVN12GVN25GVN40Drilling Diameter Range (in.)0.04 to 0.250.08 to 0.30.12 to 0.470.19 to 10.31 to 1.57Number of Spindles1/21/2/41/2Spindle Speed (RPM)1,000 to 24,0002,000 to 12,0001,200 to 10,000500 to 7,500300 to 3,200Power per Spindle (HP)231020Max. Drilling Depth (in.)1216/24/40/48Part OD Range (in.)1.50.4 to 20.6 to 30.6 to 4Part Clamping SystemHydraulic Cone Clamping/Chuck ClampingMax. Component Weight (lb.)Upon Request109111155Counter Rotation SpeedC ModelsDrill Feed Range0 to 40 in/minCoolant Tank Capacity (Gallons)211320530800Max. Coolant Pressure (PSI)1,5001,3501,2001,000
