Meet Emissions Requirements with Portable Analyzer

Sept. 18, 2017
E Instruments analyzer offers up to 9 total gas sensors for correct monitoring.

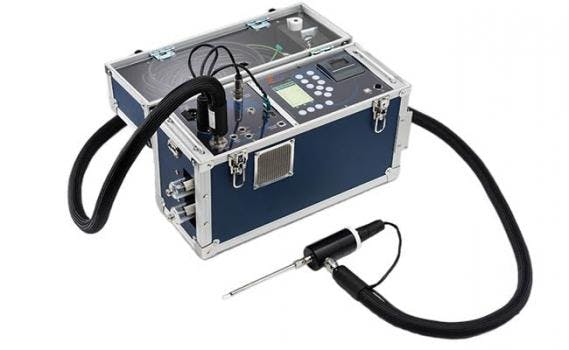

The E9000 emissions analyzer with Heated Sample Line is a complete portable system for EPA compliance level emissions monitoring and testing. The E9000 is ideal for regulatory & maintenance use in boiler, burner, engine, turbine, furnace, and other combustion applications.



The large multi-color graphic display screen includes a zoom function along with a capacitive touch sensing keypad that guides the operator through the user friendly menus on the display screen. The measured & calculated parameters on the display screen can be fully customized as the operator requires.



The internal printer is included with each E9000 and prints on a special non-fading polymer paper so it can still be easily read even when exposed to water, heat, or light. As with the display screen, the parameters on the print-out can be customized by each operator.



The E9000 has an optional heated probe head and flexible heated sample line. This feature maintains the sample gas at a temperature higher than the dew point to prevent condensation from occurring before the stack gas reaches the internal thermoelectric chiller. The water vapor condenses very rapidly at the chiller so the gases do not have ample opportunity time to dissolve into the condensate. This sample conditioning system maintains the integrity of the gas composition especially for the most water soluble gases such as NO? and SO?.



Each E9000 includes an internal high efficiency Peltier thermoelectric chiller with a built-in condensate drain pump that automatically pumps the accumulated water out through the bottom of the unit for greater convenience. Along with the optional heated sample hose & probe head, this sample conditioning system allows for longer test periods while maximizing the integrity and composition of the sampled stack gas so the gases measured by the analyzer are representative of the actual stack/flue gases.

Features:

  • Up to 9 Total Gas Sensors
  • Electrochemical Sensors – O2, CO, NO, NO2, SO2, H2S
  • NDIR Sensors – CO2, CxHy (HC), High CO
  • Heated Probe Head & Sample Line
  • Internal Thermoelectric Chiller with Automatic Condensate Removal
  • Internal Data Storage Memory
  • Built-in Printer with Non-Fading Paper
  • Android App to Monitor & Save Data
  • Software with Automatic Data Logging
  • Low NOx and True NOx Capable
  • Pre-Calibrated Gas Sensors
