The Models 332 and 362 Interval Timers are designed for a wide usage in new or replacement industrial applications. Examples include automatic and batch control circuits, where the relay needs to be energized for a specific length of time after start-up.

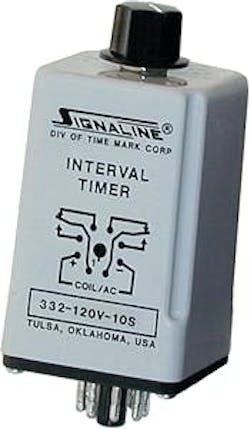

The Model 332 is a DPDT, knob-adjustable timer. The Model 362 is a DPDT, high-accuracy digital timer. Solid-state timing circuits in each model drive an internal electromechanical relay. Each model is functionally interchangeable. They are available in a variety of voltage and timing ranges to cover most any application. The 24 VAC and 120 VAC versions of the Model 332 are UL Recognized and CSA Certified. The Model 362 is UL Recognized up through the 120 volt AC/DC version. All model 362 voltage versions are CSA Certified.

Model

332

362

Supply Voltage

12, 24 or 230 VAC/DC

12, 24, 120 or 230 VAC/DC

Timing Range

1-10 seconds
1-60 seconds
1-180 seconds
1-300 seconds

0.1-102.3 seconds
1-1023 seconds
1-1023 minutes

Accuracy

±5%

±2%

Repeatability

 ±2%

±0.1%

Recycle Time

1 second

100 msec

Contact Rating

DPDT   10A at 120VAC  resistive

Transient Protection

2500 VRMS for 10 msec

Operating Temp

- 40º to +140º F

Humidity Tolerance

0-97% w/o condensation

Enclosure Material

ABS Plastic

Mounting

8-pin socket (*not included)

Weight

5 oz.

Agency Approval

 *UL Recognized and CSA Certified
* see exceptions in the DESCRIPTION on datasheet

*order 8-pin socket number 51X120









ORDERING OPTIONS

order by:

MODEL

MODEL

DELAY



(knob-adj)

 (digital)

332 ONLY

362 ONLY

options:

332-24VAC

 362-12V AC/DC

10 seconds

 0.1 seconds





332-120VAC

 362-24V AC/DC

60 seconds

 1 Second



332-230VAC

 362-120V AC/DC

180 seconds

 1 Minute




 362-230V AC/DC



300 seconds





 EXAMPLE:  To order a  knob-adjustable 24VAC/DC timer with a range of 1 to 60 seconds.
Order Model: 332-24-60
