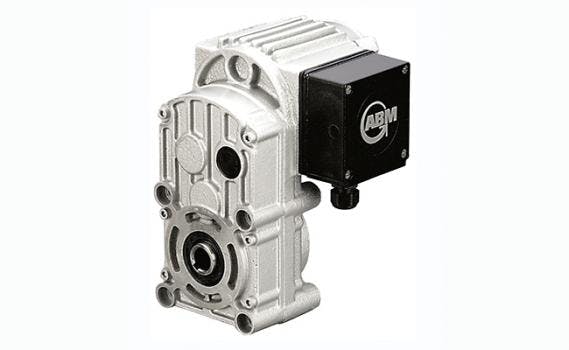

Tailor-Made Modular Motors

ABM drives are tailor-made specifically for the application whether it requires compact design, low-noise operation or maximum operating safety.



High overall efficiency of ABM Drive helical and parallel shaft gearboxes reduces power input and energy consumption. High-quality gearing guarantees quiet operation. Tight-fitting housing covers and flanges prevent distortions that can amplify noise. Aluminum housings absorb harmonics and other vibrations better than cast iron.



Many layouts are possible, from the integration of the motor into the gearbox housing, and U mounting of the motor, to customizing the output shaft. The end result is a true plug-and-play motor and drive-unit solution designed to save time and money.

• Compact design = Small space requirement
• High-grade gearing = Low noise and long lifetime
• Large variety of possible mounting options
• Maintenance-free

Motor Type1 or 3-phase asynchronous motor/Sinochron MotorRated Output0.03 to 7.5 kWTorque50 to 2,300 NmOutput Speed2.2 to 400 rpmRatio6.96 – 2022Frequency50/60 Hz or variable speed with inverter operationNumber of poles2 to 8-pole/Two-speedProtection ClassUp to IP66Mounting OptionsFlange and slip-on gear versions, four-point mounting



Applications:

• Forklifts
• Electric vehicles
• Lifting technology
• Biomass heating systems
• Textile machines
• Wind power control
• Warehouse logistics
• High-speed doors
• Air compressors
• Construction equipment
• Packaging machinery
• Vehicle-inspection equipment
