    High-Torque Motor Designs Match Robotics Requirements

    Feb. 7, 2017
    High torque density frameless motor designs fulfill the torque loads and size requirements in the rapidly growing robotics industry.
    Related To: BEI Kimco Magnetics Div
    666740d674c1d40008e3e8a0 830 350

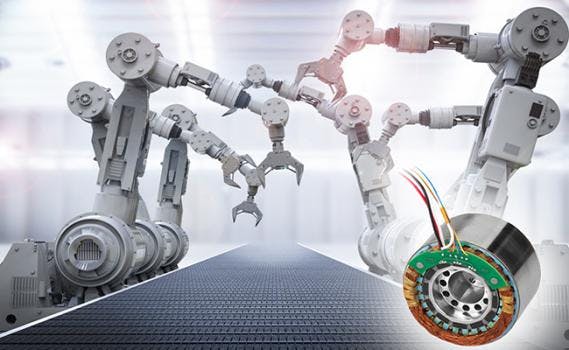

    High torque density frameless motor designs DIP26-08, DIP30-11 and DIP38-13 fulfill the torque loads and size requirements in the rapidly growing robotics industry, most recently for use in a multi-axis assembly robot for semiconductor and light manufacturing.

    All three motor incorporate new rotor magnet material configurations that enable a more simplified, cost effective manufacturing process.

    The motor may support peak torque loads ranging from 85 to 531 oz-in. within the highly compact frame sizes of 2.6, 3.0 and 3.8 in. in O.D. Compact size fits within the articulating robot wrist, elbow and shoulder axis.

    • DIP26-08, DIP30-11 and DIP38-13
    • Support peak torque loads ranging from 85 to 531 oz-in. within the highly compact frame sizes of 2.6, 3.0 and 3.8 in. in O.D
    • Fits within the articulating robot wrist, elbow and shoulder axis
