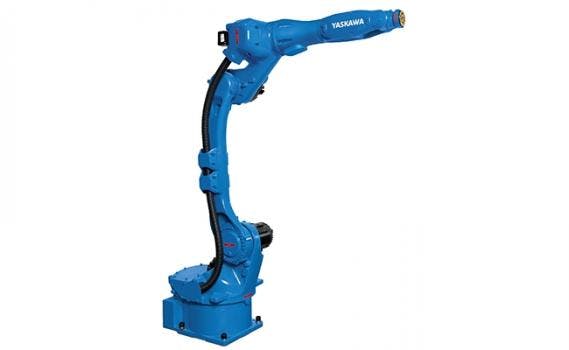

The GP8L is an extended reach robot that optimizes throughput in tight production spaces. The space-efficient robot offers extremely fast performance in a compact footprint for greater production efficiency. Ideal for logistics processes, this six-axis robot is well-suited for high-speed bin picking, induction, and packaging tasks. Applications for assembly, dispensing, material handling, and machine tending are also supported.
The long reach, slim-body design provides a broad working envelope and the ability to delve deeply into tight workspaces, and a wide wrist motion range eliminates interference.
Mounting for peripheral equipment is provided in multiple locations for easy integration. Installation is quick and efficient. A single cable connects the manipulator to the controller. Cables and air lines are routed through the robot base to upper arm to increase cable life, enhance safety, and reduce teaching time. A cable installation tube facilitates fieldbus routing through the S-axis.
The GP8L features an IP54 body and offers an 17.6 lb. (8.0 kg) payload capacity, 64.4 in. (1,636 mm) horizontal reach, and 113.9 in. (2,894 mm) vertical reach. It can be floor, wall, tilt or ceiling-mounted. Brakes are included on all axes.
GP-series robots are controlled by the high-performance YRC1000 controller.
- Payload: 17.6 lb. (8.0 kg)
- Controller: YRC1000
- Horizontal reach: 64.4 in. (1,636 mm)
- Vertical reach: 113.9 in. (2,894 mm)
