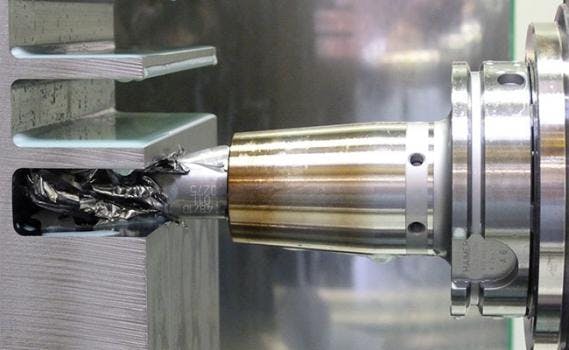

In the Safe-Lock System, special drive keys in the chuck and grooves in the tool shank prevent the milling cutter from spinning during extreme machining or that it is pulled out of the chuck.
In addition to the frictional clamping forces of the particular clamping system, the tool is held using positive locking in the tool holder through the constructive design of the Safe-Lock System.
The combination of pull-out protection and best runout accuracy lead to a low vibration and as a result very efficient machining.
Due to the increased cutting depths and feeds, the metal removal rate can be increased by up to 100%, and to a similar degree tool wear decreases due to the excellent runout characteristics.
On the safe side with Safe-Lock™:
- For High Performance Cutting (HPC)
- Highly accurate clamping due to shrink fit technology
- High torque due to form closed clamping
- No loss of accuracy
- No pull out of the tool
- No spinning of the tool
- No damages on work piece or machine
- Groove on tool shank is directed so that tool will be pulled into the chuck (depending on direction of rotation)
- Patent granted: licensing for cutting tool manufacturers possible
- New: Safe-Lock™ available for shank diammeter 6mm, 8mm, 10mm
