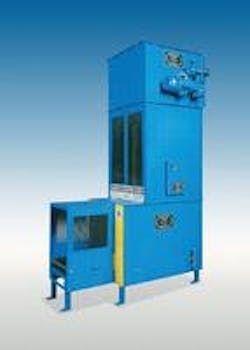

The Valu-Lift vertical lift is a light-duty, 4-strand, continuous lift conveyor designed to handle cartons and other smooth-bottom unit loads up to 50 lb. It offers economical modular construction and a platform designed specifically for efficient high-speed operation, low maintenance, and quick assembly.
The platform design consists of simple, lightweight interlocking molded polymer flights with steel connecting pins and lifts at a maximum speed of 118 fpm. The conveyor can operate in up, down or reversible mode.
Standard net lifting heights range from 8 to 14 ft with customized heights are available. The Valu-Lift’s maximum unit load is 21 in x 16 in x 22 ft (L x W x H) with a weight of 50 lb. The minimum unit load without special transitions is 10 x 4 x 1.5 in. (L x W x H) with a weight of 3 lb.
Standard safety features include a 24V DC control, a current sensing relay that instantly shuts down the conveyor if it is overloaded, totally enclosed shroud-type tunnel guards, and a smooth, clean design.
