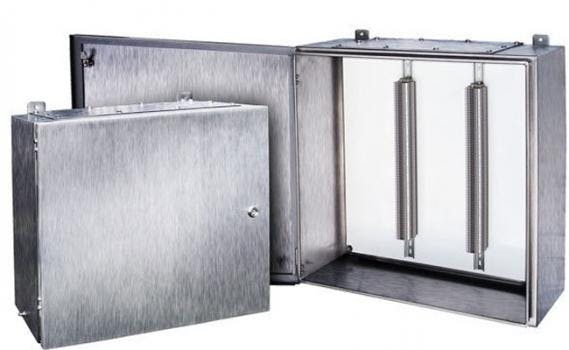

VH4X/VC4X Quarter-Turn Latch Stainless Steel Enclosures

Feb. 27, 2012

VC4X and VH4X stainless steel enclosures feature a continuous one-piece silicone gasket that provides an IP66 ingress rating for dust-tight and water-tight locations. Available in 304 or 316L stainless steel, the enclosures include standard lift-off door hinges to allow easy removal of the cover. The standard 1/4 turn door latches are designed with security in mind and include a double-bit insert.



Mounting feet can be oriented in either horizontal or vertical directions and an internal/external earth stud is included as standard. The enclosures can be drilled to match customer modification specifications and can be equipped with mounting DIN rail and terminal block assemblies. Adalet's IP66-rated stainless steel enclosures carry the most up-to-date approvals to the most current standards and can be customized to meet almost any requirement.



Customizations such as holes and cut-outs, breather/drains, terminal block population, various turn inserts, gland plates, and operators are available. Other versions which include a clamped cover and screw cover are also available.

  • 13 standard sizes available
  • Stainless steel quarter-turn latch with 3 mm double bit insert (includes key)
  • Continuous one-piece water-tight silicone gasket
  • Lift off door hinges
  • Painted steel mounting panel
  • Ground stud on box and cover
  • External earth stud
  • Wall mounting feet (vertical or horizontal)
