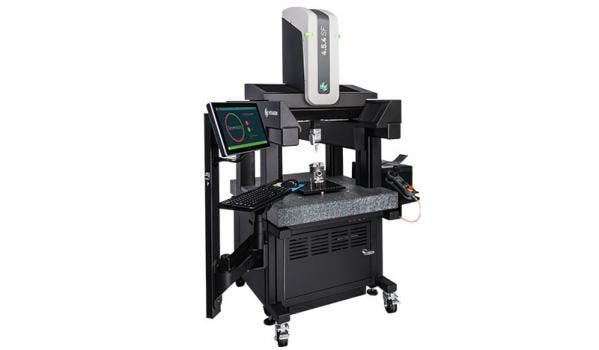

The Sheffield 4.5.4 SF is a line of coordinate measuring machines (CMMs) built for the shop floor and designed to withstand harsh manufacturing environments. The SF series introduces a variety of evolutionary advancements based on the Discovery line with thousands of earlier units in the field worldwide.
With a major focus on portability, the CMM delivers a small footprint that fits through a standard door. The CMM’s computer, controller, and interface boxes are integrated into one self-contained unit with locking wheels for mobility throughout the shop floor. The Sheffield 4.5.4 SF also uses standard 110/220V outlets with no need for shop air.
The CMM’s unique design and standard elastomeric dampers isolate the measuring platform from most vibrations. Inverted high-resolution Heidenhain scales, covered ways, and internal cable management protect machine components from ambient dust and debris while minimizing friction. An optional active vibration-dampening system is available for extreme environments. The 4.5.4 SF also incorporates design improvements for measurement and inspection applications, such as advanced thermal isolation and temperature compensation elements to ensure accuracy in unstable shop floor environments.
The SF series comes standard with PC-DMIS, the leading industrial metrology software. With a few steps, the software graphically guides users through part setup and measurement and then produces concise, meaningful reports for immediate action.
- ?No air supply needed
- Durable, low maintenance, sealed recirculating ball bearings
- Highly reliable skewed bearing drive system
- Hardened steel machine tool linear guides enhance precision, reliability and durability
- Small footprint fits any shop floor configuration
- Integrated LED workspace lighting
- Scales and reader heads mounted in inverted position to protect against shop-borne contaminants
- Bellows covers protect critical components from shop floor contaminants
- Designed for the Shop Floor
- Accuracy performance stated for any temperature in the range 59 to 104°F (15 to 40°C)
- Hexagon Manufacturing Intelligence tests and evaluates CMM products using the American standard ASME B89 and international standard, ISO 10360-2, and ISO 10360-4
